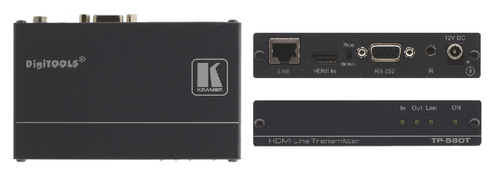

Kramer Electronics TP-580T video signal converter 1920 x 1080 pixels

Product code: TP-580T
  • Kramer Electronics TP-580T
  • Black
  • 1920 x 1080 pixels
  • 1- HDMI
  • 1- IR
  • 3.5mm mini jack
  • 1- RS-232
  • 1- HDBaseT twisted pair RJ-45 connector
  • 12 V
  • 0 - 40 °C

Kramer Electronics TP-580T video signal converter 1920 x 1080 pixels

Product code Alt: TP-580T
Kramer Electronics TP-580T video signal converter 1920 x 1080 pixels

Product Description

The TP-580T is a high-performance, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.

- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT Technology.
- HDMI Support - Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K & 4K Support.
- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit.
- System Range - Up to 70m (230ft).
- Cable - For optimum range and performance using HDBaseT, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
- Indicators - Status LEDs for input, output, link and power.
- Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.

Specifications

Ports & interfaces
Host interface
1- HDMI, 1- IR, 3.5mm mini jack, 1- RS-232
Output interface
1- HDBaseT twisted pair RJ-45 connector
Video
Maximum video resolution
1920 x 1080 pixels
