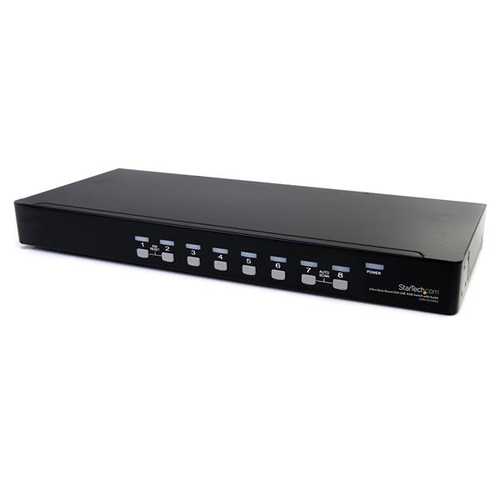

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA

Product code: SV831DUSBAU
  • StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA
  • 1920 x 1440 pixels
  • Rack mounting
  • 48 W
  • 1U
  • Black

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA

Product code Alt: SV831DUSBAU
StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) - TAA

Product Description

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV831DUSBAU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

10 ft Ultra Thin USB VGA 2-in-1 KVM Cable

15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

Features

  • Supports Hotkey and front panel push-button switching
  • Identify and select computers by names assigned via the OSD menu
  • OSD security allows each PC to be password protected
  • Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
  • Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
  • Auto-scan function automatically selects computer sequentially
  • Cascade configuration expands system capability
  • USB console interface
  • Plug-and-play system configuration
  • USB Keyboard and Mouse combo supported on one USB connection
    •

    Specifications

    Ports & interfaces
    Number of computers controlled
    8
    Keyboard port type
    USB
    Mouse port type
    USB
    Video port type
    VGA
    Console ports
    3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
    Design
    Rack mounting
    Yes
    Product colour
    Black
    Performance
    Maximum resolution
    1920 x 1440 pixels

    Customer Reviews
