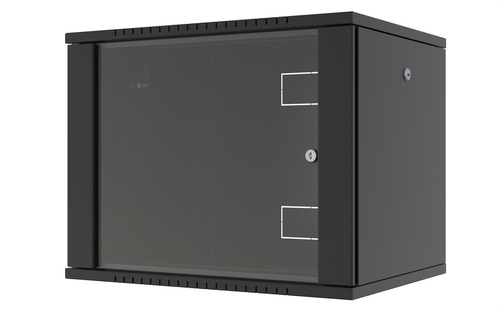

Lanview RWF09U45BL rack cabinet 9U Wall mounted rack Black

Product code: RWF09U45BL
  • Lanview RWF09U45BL
  • Wall mounted rack
  • 9U
  • 60 kg
  • Key lock
  • Rack rails
  • 20.3 kg

Lanview RWF09U45BL rack cabinet 9U Wall mounted rack Black

Product code Alt: RWF09U45BL
Lanview RWF09U45BL rack cabinet 9U Wall mounted rack Black

Product Description

Product Dimensions: W:600 x D:450 x H:512mm
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded aluminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.

Features

  • Glass Door
  • Wallmount
  • RAL9005
  • Flat-Packed
    •

    Specifications

    Features
    Rack capacity
    9U
    Type
    Wall mounted rack
    Maximum weight capacity
    60 kg

    Customer Reviews

    No reviews have been written for this product yet.

    £116.59 excl. VAT
    53 in stock

    Product code: RWF09U45BL
    • Lanview RWF09U45BL
    • Wall mounted rack
    • 9U
    • 60 kg
    • Key lock
    • Rack rails
    • 20.3 kg
    £116.59 excl. VAT
    53 in stock

    Product Description

    Product Dimensions: W:600 x D:450 x H:512mm
    Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded aluminum frame and high fracture resistance present a decorative view.
    In free standing type applications, they may be used with optional pinion feet or caster group.
    By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
    If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
    Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
    Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
    By means of 145mm x 70mm cable inlet holes at the upper, lower and rear door of the cabinet, it provides cable inlet at 3 directions which in turn facilitates installation.
    Thanks to the rubber edged cable entry module, movable for 0-50 mm and with sliding compression system, incoming cables are compressed safely whereas dust is reduced inside at maximum levels.

    Features

  • Glass Door
  • Wallmount
  • RAL9005
  • Flat-Packed
    •

    Specifications

    Features
    Rack capacity
    9U
    Type
    Wall mounted rack
    Maximum weight capacity
    60 kg
