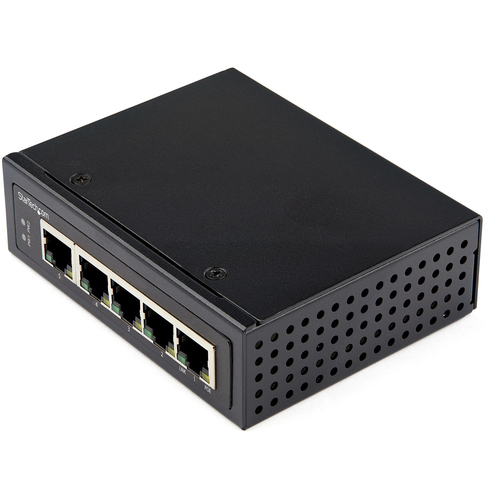

StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C

Product code: IESC1G50UP
  • StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C
  • Unmanaged
  • Gigabit Ethernet (10/100/1000)
  • Full duplex
  • Power over Ethernet (PoE)
  • Wall mountable

StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C

Product code Alt: IESC1G50UP
StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C

Product Description

Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port

This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

Cameras

Sensors

Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

Operating Temperature Range: -40 C to 75 C

IP-30 rated housing

Vibration, shock, and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

A Flexible & Easy-to-Deploy Solution

Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.

The StarTech.com Advantage

- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)

Features

  • POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
  • Use with devices like cameras & access points using Cat 5e/6
  • FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
  • ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C
  • Vibration, shock & free fall rated
  • Rugged industrial IP-30 aluminum housing
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    5
    Basic switching RJ-45 Ethernet ports type
    Gigabit Ethernet (10/100/1000)
    Network
    Networking standards
    IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
    10G support
    No
    Management features
    Switch type
    Unmanaged
    Design
    Rack mounting
    No
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    Yes

    Customer Reviews

    No reviews have been written for this product yet.

    £211.06 excl. VAT
    2 in stock

    Product code: IESC1G50UP
    • StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C
    • Unmanaged
    • Gigabit Ethernet (10/100/1000)
    • Full duplex
    • Power over Ethernet (PoE)
    • Wall mountable
    £211.06 excl. VAT
    2 in stock

    Product Description

    Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port

    This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

    For Demanding Environments Where No Fiber Connections Are Required

    Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

    Cameras

    Sensors

    Wi-Fi Access Points

    High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

    Truly Industrial for Devices That Must Function Under Harsh Conditions

    Industrial features include:

    Operating Temperature Range: -40 C to 75 C

    IP-30 rated housing

    Vibration, shock, and free-fall standard testing

    This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

    A Flexible & Easy-to-Deploy Solution

    Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.

    The StarTech.com Advantage

    - POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
    - Use with devices like cameras & access points using Cat 5e/6
    - FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)

    Features

  • POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
  • Use with devices like cameras & access points using Cat 5e/6
  • FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
  • ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C
  • Vibration, shock & free fall rated
  • Rugged industrial IP-30 aluminum housing
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    5
    Basic switching RJ-45 Ethernet ports type
    Gigabit Ethernet (10/100/1000)
    Network
    Networking standards
    IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
    10G support
    No
    Management features
    Switch type
    Unmanaged
    Design
    Rack mounting
    No
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    Yes

    Customer Reviews

    No reviews have been written for this product yet.
