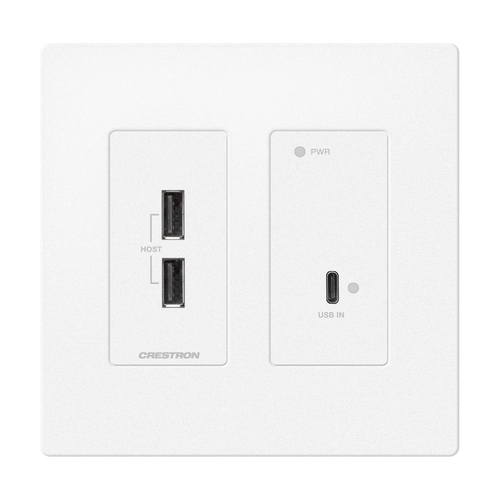

Crestron HD-TXU-4KZ-111-2G-W AV extender AV receiver White

Product code: HD-TXU-4KZ-111-2G-W
  • Crestron HD-TXU-4KZ-111-2G-W
  • 4096 x 2160 pixels
  • AV receiver
  • 70 m
  • Wired
  • White
  • HDCP

Crestron HD-TXU-4KZ-111-2G-W AV extender AV receiver White

Product code Alt: HD-TXU-4KZ-111-2G-W
Crestron HD-TXU-4KZ-111-2G-W AV extender AV receiver White

Product Description

The HD-TXU-4KZ-111-2G is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-2G to the DM Essentials receiver.

The HD-TXU-4KZ-111-2G is available in two models: HD-TXU-4KZ-111-2G-B (black) and HD-TXU-4KZ-111-2G-W (white).

Interoperability with a DM Essentials HD-RXU-4KZ Series Receiver

For interoperability between the HD-TXU-4KZ-111-2G and an HD-RXU-4KZ Series receiver, the DM Essentials output port of the HD-TXU-4KZ-111-2G must be connected to the DM Essentials input port of the HD-RXU-4KZ Series receiver.

NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).

4K60 4:4:4 and HDR Support

The HD-TXU-4KZ-111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

USB 2.0 Data Extension

Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.

Two-Gang Wall Plate Design

The HD-TXU-4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TXU-4KZ-111-2G can receive power from the remote DM Essentials receiver (surface mountable only).

Features

  • DM® Essentials transmitter functionality designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver
  • Point-to-point extension of a USB-C® DisplayPort™ AV signal and USB 2.0 data signals over a CAT5e or higher cable
  • USB-C input with DisplayPort Alt Mode capability and USB 2.0 support
  • DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Two-gang-wall plate design with white finish
  • Decorator style faceplate required (FP-G2-DM Series sold separately)
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Features
    Type
    AV receiver
    Maximum resolution
    4096 x 2160 pixels

    Customer Reviews

    No reviews have been written for this product yet.

    £443.53 excl. VAT
    6 in stock

    Product code: HD-TXU-4KZ-111-2G-W
    • Crestron HD-TXU-4KZ-111-2G-W
    • 4096 x 2160 pixels
    • AV receiver
    • 70 m
    • Wired
    • White
    • HDCP
    £443.53 excl. VAT
    6 in stock

    Product Description

    The HD-TXU-4KZ-111-2G is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-2G to the DM Essentials receiver.

    The HD-TXU-4KZ-111-2G is available in two models: HD-TXU-4KZ-111-2G-B (black) and HD-TXU-4KZ-111-2G-W (white).

    Interoperability with a DM Essentials HD-RXU-4KZ Series Receiver

    For interoperability between the HD-TXU-4KZ-111-2G and an HD-RXU-4KZ Series receiver, the DM Essentials output port of the HD-TXU-4KZ-111-2G must be connected to the DM Essentials input port of the HD-RXU-4KZ Series receiver.

    NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).

    4K60 4:4:4 and HDR Support

    The HD-TXU-4KZ-111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

    USB 2.0 Data Extension

    Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.

    Two-Gang Wall Plate Design

    The HD-TXU-4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TXU-4KZ-111-2G can receive power from the remote DM Essentials receiver (surface mountable only).

    Features

  • DM® Essentials transmitter functionality designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver
  • Point-to-point extension of a USB-C® DisplayPort™ AV signal and USB 2.0 data signals over a CAT5e or higher cable
  • USB-C input with DisplayPort Alt Mode capability and USB 2.0 support
  • DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Two-gang-wall plate design with white finish
  • Decorator style faceplate required (FP-G2-DM Series sold separately)
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Features
    Type
    AV receiver
    Maximum resolution
    4096 x 2160 pixels

    Customer Reviews

    No reviews have been written for this product yet.
