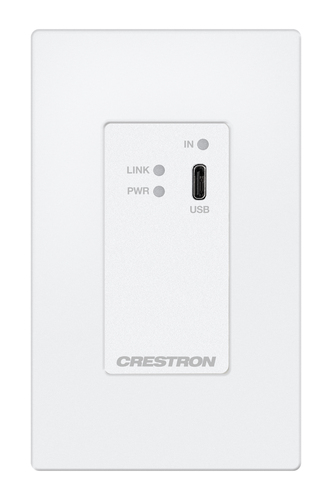

Crestron HD-TX-4KZ-111-1G-W AV extender AV receiver White

Product code: HD-TX-4KZ-111-1G-W
  • Crestron HD-TX-4KZ-111-1G-W
  • 4096 x 2160 pixels
  • AV receiver
  • 70 m
  • Wired
  • White
  • HDCP

Crestron HD-TX-4KZ-111-1G-W AV extender AV receiver White

Product code Alt: HD-TX-4KZ-111-1G-W
Crestron HD-TX-4KZ-111-1G-W AV extender AV receiver White

Product Description

The HD-TX-4KZ-111-1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD-TX-4KZ-111-1G includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

The HD-TX-4KZ-111-1G is available in two models: HD-TX-4KZ-111-1G-W (white) and HD-TX-4KZ-111-1G-B (black).

Interoperability with a DM Lite Receiver or DMPS Lite Switcher

The DM Lite output port of the HD-TX-4KZ-111-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101, and HD-RXCA-4KZ-101. Supported DMPS Lite switchers are the HD-PS621, HD-PS622, HD-PS401, HD-PS402, and HD-RX-4K-210-C-E(-POE).

Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.

The HD-TX-4KZ-111-1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111-1G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-TX-4KZ-111-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

One-Gang Wall Plate Design

The HD-TX-4KZ-111-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TX-4KZ-111-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.

Features

  • Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
  • USB-C® input with DisplayPort™ Alt Mode capability for the point-to-point extension of a DisplayPort AV signal over a CAT5e or higher cable
  • DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • One-gang wall plate design with white finish
  • Decorator style faceplate required (FP-G Series sold separately)
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Features
    Type
    AV receiver
    Maximum resolution
    4096 x 2160 pixels
