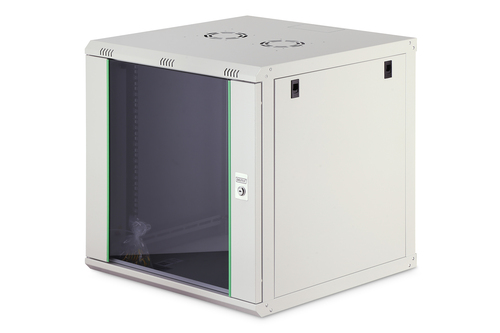

Digitus Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD)

£209.78 excl. VAT

Digitus Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD)

Product code: DN-19 12U-6/6-EC

Digitus Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD)
Wall mounted rack
12U
60 kg
Key lock
Grey

Digitus Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD)

Product code Alt: DN-19 12U-6/6-EC

Product Description

483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

- 450 mm depth offers space-saving installation
- Optimum ventilation and air extraction
- Lockable safety glass door with steel frame

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.

Features

Protection class IP20

Lockable safety glass door with steel frame

230° door opening angle

1-point locking on the front door

483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

483 mm (19") profile rails are adjustable in depth and marked with the height unit

1.0 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated

Cable entry possible at the rear, roof and base (pre-punched cut-outs)

Roof is prepared to accommodate a fan element (punched-out mounts)

Ventilation slots for active and passive ventilation

4 earthing points (base, side panel and front door) with protective cap

Installation depth for components (standard maximum): 369 - 470 mm

Specifications

Features
Rack capacity	12U
Type	Wall mounted rack
Maximum weight capacity	60 kg
