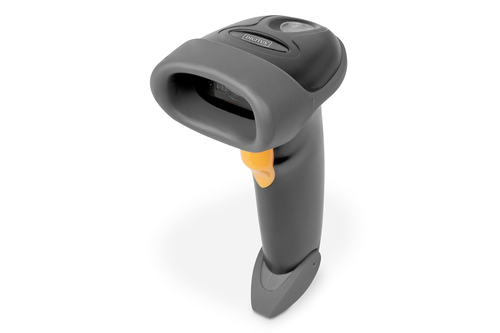

Digitus 2D Barcode Hand Scanner, QR-Code Compatible

Product code: DA-81002
  • Digitus 2D Barcode Hand Scanner
  • QR-Code Compatible
  • Handheld bar code reader
  • 1D/2D
  • CMOS
  • Codabar
  • Code 128
  • Code 32
  • Code 39
  • Code 93
  • EAN 128
  • EAN-13
  • EAN-8
  • GS1 DataBar
  • GS1-128...
  • Data Matrix
  • PDF417
  • QR Code
  • 200 reads/s

Digitus 2D Barcode Hand Scanner, QR-Code Compatible

Product code Alt: DA-81002
Digitus 2D Barcode Hand Scanner, QR-Code Compatible

Product Description

High-resolution hand scanner for reliable use in retail and logistics – also suitable for QR codes

- Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
- High resolution: Scans high-resolution barcodes
- 200 scans per second, bidirectional for reliable detection
- Suitable for one- and two-dimensional barcodes
- Reads barcodes on screens – ideal for payment via smartphone/QR code
- Dust-protected and water-resistant (IP54)
- Ideal for retail, logistics, and commerce of all kinds
- Plug and Play – no additional driver necessary
- Silicon cover absorbs impacts and protects against damage
- Anti-inference: External light sources have no influence on the scan.

The DIGITUS® 2D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per second, this bidirectional scanner delivers ideal results. The manual scanner is suitable for one- and two-dimensional high-resolution codes such as barcodes or QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payment. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.

Features

  • 2D & 1D Scan – Barcodes & QR codes on paper or displays
  • Power consumption: 3.3 - 5 V DC, 120 mA
  • Power supply: USB
  • Scan type: Image capture
  • Sensor: CMOS
  • CPU: ARM 32-Bit Cortex
  • Interface: USB
  • Light source: LED (CMOS)
  • Trigger: Pushbutton, automatic
  • Number of scans: 200 per second
  • Error rate in bits: 1/5 million, 1/20 million
  • Resolution: 1D: =5mil, 2D:= 10mil
  • Scan width: 10 cm
  • Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
  • Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
  • Anti-interference: External light sources have no influence on the scan
  • 1D decoding: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6,
  • 2D decoding: PDF417, QR code, Datamatrix.
  • Compatible with Windows / Vista / Android / iOS / Mac / Linux systems
  • Includes scanner holder
  • Material: ABS + PC
  • Protection type: IP54
  • Operating temperature: -20 °C to +50 °C
  • Storage temperature: -40 °C to +70 °C
  • Cable: 2 m (USB - RJ45)
  • Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
  • Weight: 120 g
  • Color: Black
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Standard interfaces
    RJ-45, USB
    Weight & dimensions
    Weight
    120 g
    Scanning
    Type
    Handheld bar code reader
    Scanner type
    1D/2D
    Sensor type
    CMOS
    Linear (1D) barcodes supported
    Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, U.P.C.
    2D (matrix & stacked) barcodes supported
    Data Matrix, PDF417, QR Code
    Power
    Power source type
    USB
    Performance
    Product colour
    Black

    Customer Reviews

    No reviews have been written for this product yet.
