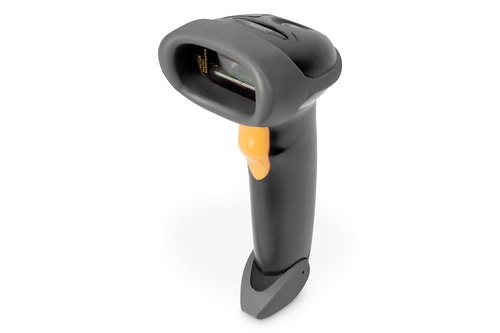

Digitus 1D Barcode Hand Scanner

Product code: DA-81001
  • Digitus 1D Barcode Hand Scanner
  • Handheld bar code reader
  • 1D
  • Linear
  • Codabar
  • Code 128
  • Code 32
  • Code 39
  • Code 93
  • EAN 128
  • EAN-13
  • EAN-8
  • GS1 DataBar
  • GS1-128...
  • -45 - 45°
  • 30 cm

Digitus 1D Barcode Hand Scanner

Product code Alt: DA-81001
Digitus 1D Barcode Hand Scanner

Product Description

High-resolution hand scanner for reliable use in retail and logistics

- Precise scanning of 1D barcodes (barcodes)
- High resolution: Scans high-resolution barcodes
- 200 scans per second, bidirectional for reliable detection
- Suitable for barcodes of up to 90 characters
- Dust-protected and water-resistant (IP54)
- Ideal for retail, logistics, and commerce of all kinds
- Plug and Play – no additional driver necessary
- Silicon cover absorbs impacts and protects against damage
- Auditory and visual scan confirmation

The DIGITUS® 1D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per second, this bidirectional scanner delivers ideal results. The manual scanner is suitable for high-resolution barcodes with up to 90 characters. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.

Features

  • 1D Scan
  • Power consumption: 3.3 -5 V DC, 100 mA (1 µA while idle)
  • Power supply: USB
  • Scan type: bidirectional
  • Sensor: Linear
  • CPU: ARM 32-Bit Cortex
  • Interface: USB
  • Light source: 650 nm visual laser diode
  • Trigger: Pushbutton
  • Number of scans: 200 per second
  • Error rate in bits: 1/5 million, 1/20 million
  • Resolution: =3.3mil
  • Scan width: 30 cm
  • Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
  • Scan angle: Angle of rotation ±30°, angle of inclination ± 45°, angle of declination ± 60°
  • Decoding types: EAN-8, EAN-13, EAN-128, Code 39, Code 93, UPC, GS1 Databar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss extended, Industrial 25, Code 128, Codabar, Big Code
  • Button cycle: 500,000 times
  • Laser cycle: 10,000 times
  • Compatible with Windows/Android/iOS/Mac/Linux systems
  • Material: ABS + PC
  • Protection type: IP54
  • Operating temperature: -20 °C to +50 °C
  • Storage temperature: -40 °C to +70 °C
  • Cable: 2 m (USB - RJ45)
  • Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
  • Weight: 110 g
  • Color: Black/gray
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Standard interfaces
    RJ-45, USB
    Weight & dimensions
    Weight
    110 g
    Scanning
    Type
    Handheld bar code reader
    Scanner type
    1D
    Sensor type
    Linear
    Linear (1D) barcodes supported
    Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, U.P.C.
    2D (matrix & stacked) barcodes supported
    Not supported
    Power
    Power source type
    USB
    Performance
    Product colour
    Black
