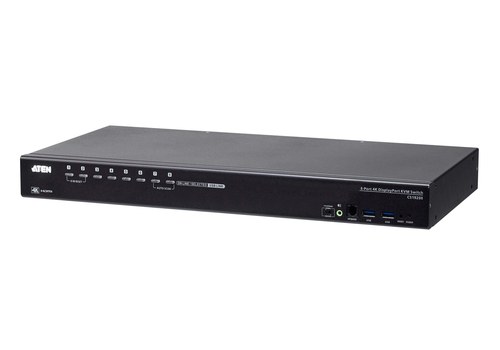

ATEN CS19208 KVM switch Rack mounting Black

Product code: CS19208
  • ATEN CS19208
  • 4096 x 2160 pixels
  • 4K Ultra HD
  • Rack mounting
  • 18.44 W
  • Black

ATEN CS19208 KVM switch Rack mounting Black

Product code Alt: CS19208
ATEN CS19208 KVM switch Rack mounting Black

Product Description

The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.

To meet the needs of easy expansion and flexibility, the CS19208 can be cascaded to two levels to control up to 128 computers from a single console. Furthermore, the CS19208 supports multi-display function by stacking up to eight CS19208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.

With two patented ATEN technology – Video DynaSync™ and EDID Expert™ , the CS19208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.

Besides, the CS19208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS19208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.

To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19208 is ideal for server room/computer room management applied in industries with requirements for high-quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.

Features

  • One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral devices
  • Cascadable to two levels – controls up to 128 computers1
  • Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
  • Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
  • Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility
  • Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
  • Supports HD audio2
  • Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
  • Independent switching of KVM and USB peripheral focus3
  • Two-level (administrator/user) password authorization for enhanced security protection
  • Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
  • Auto Scan Mode for monitoring all computers
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
  • Mac/Sun keyboard support and emulation4
  • Supports hot-plugging
  • DisplayPort 1.2 compliant; HDCP 2.2 compliant
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Firmware upgradable
  • Supports multimedia, wireless keyboards and mouse
  • Note:
  • 1. Cascading between CS19208 and CS19216 is available.
  • 2. HD audio through HDMI and DisplayPort channel cannot be switched independently.
  • 3. Independent switching is only supported under mouse emulation mode.
  • 4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
    •

    Specifications

    Ports & interfaces
    Number of computers controlled
    128
    Keyboard port type
    USB
    Mouse port type
    USB
    Video port type
    DisplayPort
    Console ports
    3.5mm headphone, DisplayPort, HDMI, USB A
    Design
    Rack mounting
    Yes
    Product colour
    Black
    Performance
    HD type
    4K Ultra HD
    Maximum resolution
    4096 x 2160 pixels
