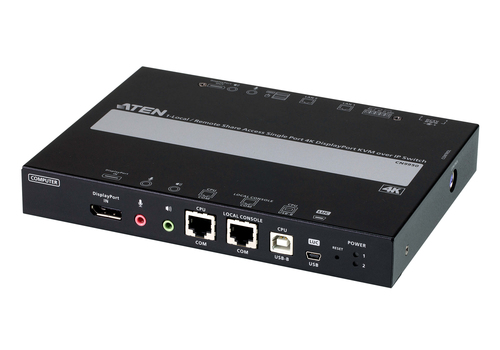

ATEN CN9950 KVM switch Black

Product code: CN9950
  • ATEN CN9950
  • 4096 x 2160 pixels
  • Ethernet LAN
  • 4K DCI
  • 9.76 W
  • Black

ATEN CN9950 KVM switch Black

Product code Alt: CN9950
ATEN CN9950 KVM switch Black

Product Description

The CN9950 KVM over IP Switch allows for remote access to video, audio, and virtual media of a PC or workstation, and features DisplayPort high-definition video with resolutions of up to 4K DCI (4096 x 2160) @ 30 Hz at both the local and remote consoles. Built with an advanced FPGA graphics processor, the CN9950 offers better image and video quality to enhance the user experience, while also meeting the RS-232 standards for serial control.

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard, and mouse.

To ensure seamless connectivity, the CN9950 is equipped with dual LAN and dual power functionality to keep operations in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the devices are offline (e.g. power failure) for device status monitoring. Moreover, the CN9950 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital input from a connected input/alarm device for notification of critical events.

For ease of remote management, the CN9950 WebClient Viewer supports remote desktop access without additional software applications. The DisplayPort 4K KVM over IP Switch provides a web-based GUI for remote access and management. In addition, a unified multi-language interface can minimize user training time and increase productivity.

The CN9950 is ideal for data centers, server rooms, and control rooms for remote access management in industries with requirements for high-quality images and multitasking, such as global organizations and companies with several office locations where it can function as a bridge between local and remote workplaces.

Add-ons and Accessories

Features

  • Supports DisplayPort resolution up to 4K DCI (4096 x 2160) @ 30 Hz at both the local and remote consoles
  • A mini USB port in the front panel can serve as a Virtual Media USB port or a Laptop USB Console (LUC) port
  • Compact and slim design for space utility optimization
  • Supports 5-pin Relay/DI Terminal for environment monitoring and remotely reboot control
  • Provides an FPGA graphics processor for better image quality
  • Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
  • Dual power supply and dual LAN for backup
  • Provides over IP capability to DisplayPort KVM switches without over IP functionality
  • Allows access to the CN9950 via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
    •

    Specifications

    Display
    Built-in display
    No
    Ports & interfaces
    Keyboard port type
    USB
    Mouse port type
    USB
    Video port type
    DisplayPort
    Console ports
    3.5mm headphone, 3.5mm mic, DisplayPort, USB A
    Design
    Rack mounting
    No
    Product colour
    Black
    Performance
    HD type
    4K DCI
    Maximum resolution
    4096 x 2160 pixels
