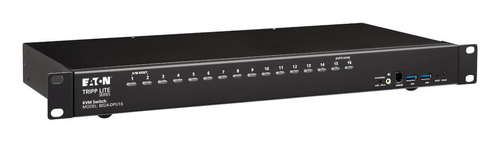

Tripp Lite B024-DPU16 16-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount

£1,471.34 excl. VAT

Tripp Lite B024-DPU16 16-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount

Product code: B024-DPU16

Tripp Lite B024-DPU16 16-Port DisplayPort/USB KVM Switch with Audio/Video and USB Peripheral Sharing, 4K 60 Hz, 1U Rack-Mount

Product code Alt: B024-DPU16

Product Description

Connects 16 DisplayPort Devices to a Single DisplayPort Monitor, Keyboard and Mouse
This rack-mount KVM switch lets you access, control, boot and reboot up to 16 computers or other devices with DisplayPort connectors at the same time. In addition to desktop and notebook computers, the KVM also connects up to 16 media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All 16 computers share one DisplayPort and/or HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Connect up to 256 Computers to One Original Console
You can also cascade two levels of B024-DPU16 KVM switches, allowing centralized access to as many as 256 computers using a single monitor, keyboard and mouse.

Switching Between Computers Is Fast and Easy

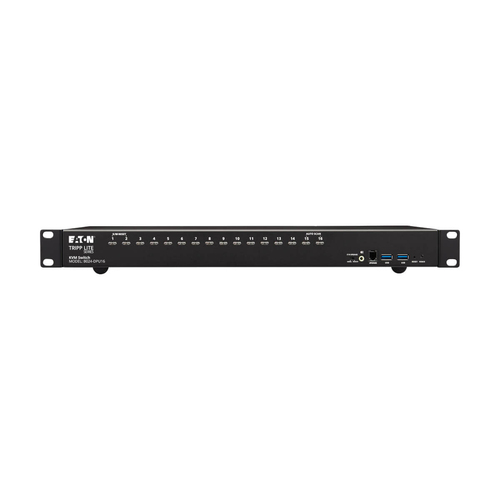

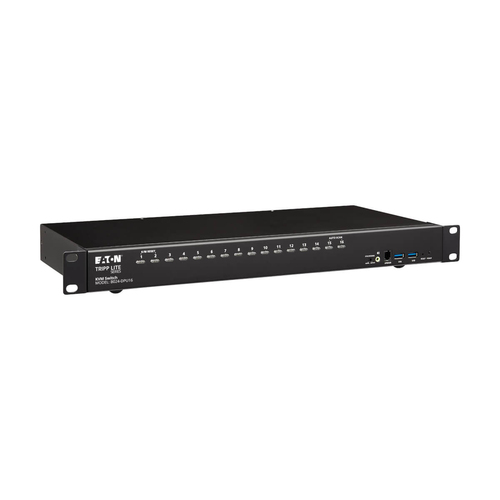

Use the front-panel pushbuttons, RS-232 commands, hotkeys or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup

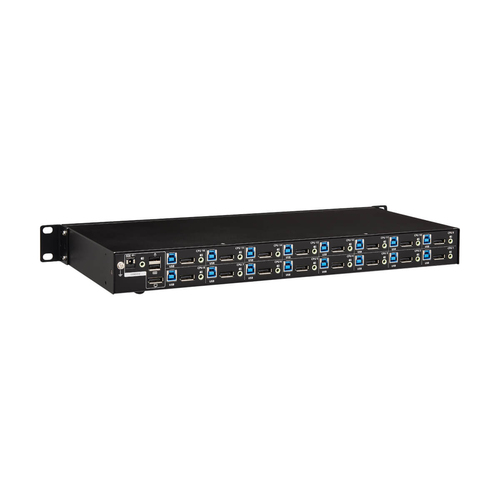

Connect your DisplayPort and/or HDMI monitor, keyboard, mouse, and (optional) speakers to the KVM’s console ports. Then, use the included DisplayPort and USB cables to connect your computers to the KVM. The plug-and-play B024-DPU16 requires no software, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS, Sun and Linux.

USB Hub Lets You Share Peripherals between Computers
The built-in dual-port USB 3.1 Gen 1 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with earlier USB generations. LEDs indicate which computer is using the connected USB device.

Transmits Crystal-Clear 4K Video and High-Definition Audio
The B024-DPU16 supports true 4K video (4096 x 2160) at 60 Hz and 2.1-channel surround sound with full bass response. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

Stack Units to Expand Your Workstation and Enhance Your Productivity
Stack as many as eight B024-DPU16 KVM switches on a level surface to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation may offer dual-display, triple-display, quad-display or multi-display scenarios, up to eight stages.

Designed for Convenient Mounting with Included Hardware
The heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply comes with a detachable C13-to-C14 cord.

Benefits

Specifications

Technical details
Product colour	Black
Rack mounting	Yes
Push button	Yes
On Screen Display (OSD)	Yes
LED indicators	Yes
Hot keys	Yes
USB hub	Yes
Sustainability compliance	Yes
Sustainability certificates	CE, REACH, RoHS, WEEE
Video
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, DisplayPort, USB A
HDCP	Yes
DisplayPorts quantity	17
DisplayPort version	1.2
Number of computers controlled	16
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	17
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	16
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Performance
Daisy chain	Yes
HDCP	Yes
Firmware upgradeable	Yes
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Design
Country of origin	Taiwan
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Rack capacity	1U
Housing material	Metal
Display
Built-in display	No
On Screen Display (OSD)	Yes
Power
Input current	1.4 A
Output current	5 A
Output voltage	12 V
AC input voltage	100 - 250 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	18.44 W
External power adapter	Yes
Features
Country of origin	Taiwan
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE, REACH, RoHS, WEEE
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	214.3 mm
Depth	44 mm
Height	432.4 mm
Weight	3.11 kg
Package width	494.3 mm
Package depth	324.1 mm
Package height	133.1 mm
Package weight	5.31 kg
Packaging data
Package type	Box
Package width	494.3 mm
Package depth	324.1 mm
Package height	133.1 mm
Package weight	5.31 kg

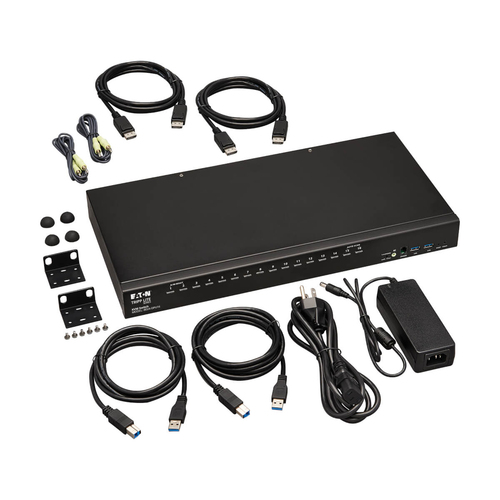

Packaging content
Rubber feet	Yes
Rack mount kit	Yes
Cables included	AC, Audio (3.5mm), DisplayPort, USB Type-A to USB Type-B
Quick installation guide	Yes
AC adapter included	Yes
Package type	Box
Logistics data
Country of origin	Taiwan
Master (outer) case width	515 mm
Master (outer) case length	328 mm
Master (outer) case height	155 mm
Master (outer) case gross weight	5.11 kg
Products per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332263718
Harmonized System (HS) code	8471.80.1000
Other features
Push button	Yes
Hot keys	Yes

£1,471.34 excl. VAT

1 in stock
