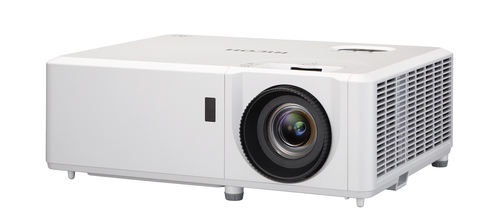

Ricoh PJ WXL5860 data projector 4700 ANSI lumens DLP WXGA (1280x800) White

Product code: 432481

Ricoh PJ WXL5860 data projector 4700 ANSI lumens DLP WXGA (1280x800) White

Product code Alt: 432481
Ricoh PJ WXL5860 data projector 4700 ANSI lumens DLP WXGA (1280x800) White

Product Description

Projecting high quality, even in small spaces

Ricoh compact laser projector in a meeting roomCompact and Portable Design
At just 4.3 kg (PJ WXL5860 model) and 4.6kg (PJ WUL5860 model) in weight and with a footprint of only 337 x 265 x 108mm, RICOH Compact Laser Projectors provide a versatile, short throw day-to-day solution for smaller presentation spaces.

Multi-Module Laser Light Source
The multi-module structure laser light source supports continuous operation for 7 x 24 hours and outputs a stable brightness of 4000-4700lm (subject to model). The laser beam is produced by multiple laser diodes, increasing reliability. It offers three laser power modes: Normal, Eco, and Image ECO. The Image ECO mode can dynamically adjust power consumption based on image brightness, extending the life of the laser diode.

High Image Quality and Wide Colour Gamut
These DLP projectors use RICOH's unique NCE natural colour gain technology, efficiently covering over 92% of the Rec.709 colour gamut range and delivering natural and realistic colours.

20,000 Hour-Long Life
The laser light source has a long life of 20,000 hours, which is 6-7 times the life of a typical projector bulb source.

Quick start-up
Full brightness is achieved within seconds of turning the projector on. The light will also turn off as soon as the unit is powered off.

4K Signal Compatible Display
The PJ WUL5860 and PJ WXL5860 models are compatible with 3840x2160HZ, which means they can directly play 4K resolution format audio and video content.

Horizontal and Vertical Keystone/Four Corners Correction
Complex or uneven installation surfaces can cause distortion of the image. The four corners correction function can adjust each corner of the projection screen separately, supplemented by horizontal and vertical keystone adjustment, delivering a rectangular final image.

Vertical Lens Shift
The +10% (PJ WUL5860) and +12.4% (PJ WXL5860) vertical lens adjustment ranges make these models easier to ceiling-mount, enabling image adjustment without moving the unit.

IP6X Dust-Proof Design
Dust is a key factor affecting the life of a projector. The fully closed optical engine in both models meets the IP6X dust-proof standard, effectively eliminating image speckle, brightness decline, and projector life decline that dust can cause, as well as significantly reducing the cost of maintenance and consumables.

HDMI2.0
The HDMI2.0 interface expands bandwidth to 18GBps, achieving a refresh rate of 50/60Hz in 4K image transmission – about twice that of HDMI1.4. This makes playback lively, smooth and much gentler to the human eye.

360-degree Installation and Portrait Orientation Support
The PJ WUL5860 and PJ WXL5860 projectors can be installed to project through 360 degrees, making them highly flexible, reducing installation limitations and greatly expanding the application range.

Supports DICOM SIM medical mode
Equipped with DICOM SIM (Digital Imaging and Communications in Medicine Simulation), these models are suitable for projecting monochromatic medical images, such as X-ray films, MRI, and tomography images. Details of medical images can be presented to a wider audience in a large, high-definition format, ideal for medical education environments.

Customisable ID Remote Control
Up to 99 projectors can be assigned a separate ID and individually controlled, one at a time.

Mercury-free
The solid-state semiconductor laser light source used in the PJ WUL5860 and PJ WXL5860 models contains no harmful mercury elements – unlike many bulb projectors which use high voltage mercury lamps.

Specifications

Projector
Number of colours1.073 billion colours
Projector native resolutionWXGA (1280x800)
Native aspect ratio16:10
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1 - 7.2 m
Contrast ratio (typical)100000:1
Zoom ratio1.36:1
Zoom capabilityYes
Matrix size1.65 cm (0.65")
Keystone correction, vertical-30 - 30°
Keystone correction, horizontal-30 - 30°
Projection technologyDLP
Projector brightness4700 ANSI lumens
Zoom typeManual
Smart projectorNo
Lamps
Light source typeLaser
Service life of light source20000 h
Light source
Light source typeLaser
Service life of light source20000 h
Lens system
Zoom ratio1.36:1
Zoom capabilityYes
FocusManual
Focal length range15.985 - 21.423 mm
Aperture range (F-F)2.51 - 2.93
Throw ratio1.113-1.523
Zoom typeManual
Video
Analog signal format systemNot supported
Full HDYes
3DNo
Audio
Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power16 W
Ports & interfaces
Mobile High-Definition Link (MHL)Yes
MHL version2.2
Micro-USB ports quantity1
HDMI version1.4/2.0
VGA (D-Sub) ports quantity2
HDMI ports quantity2
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
Audio (L/R) in1
Serial interface typeRS-232C
DVI portNo
USB 2.0 Type-A ports quantity1
Network
Smart TVNo
Ethernet LANYes
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo
Ethernet LAN (RJ-45) ports1
Storage
Card reader integratedNo
Sound emission
Noise level34 dB
Noise level (economic mode)33 dB
Technical details
Product colourWhite
Performance
Market positioningPresentation
Noise level34 dB
Noise level (economic mode)33 dB
Features
InteractiveNo
Noise level34 dB
Noise level (economic mode)33 dB
Multimedia
Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power16 W
Design
Market positioningPresentation
Product colourWhite
Display
Built-in displayNo
Power
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power sourceAC
Power consumption (typical)300 W
Power consumption (standby)0.5 W
Operational conditions
Operating relative humidity (H-H)0 - 85%
Operating temperature (T-T)0 - 40 °C
Weight & dimensions
Weight5 kg
Width337 mm
Depth265 mm
Height108 mm
Packaging content
Remote control includedYes
ManualYes
Batteries includedYes
