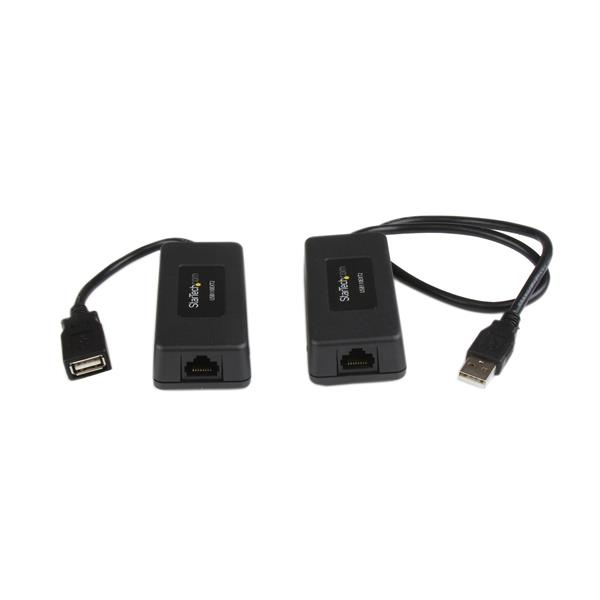

StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m)



Product Description

Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable
The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.
The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.
Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 131 feet (40 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+
- Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options
- USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device

Specifications

Performance
TypeNetwork transmitter & receiver
Maximum transfer distance40 m
Data transfer rate12 Mbit/s
Cable types supportedCat5,Cat6
Technical details
TypeNetwork transmitter & receiver
Maximum transfer distance40 m
Data transfer rate12 Mbit/s
Cable types supportedCat5,Cat6
Sustainability certificatesRoHS
Ports & interfaces
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Design
CertificationCE, FCC, REACH
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%
Weight & dimensions
Width40 mm
Depth85 mm
Height25 mm
Weight110 g
Colour
Product colourBlack
Certificates
CertificationCE, FCC, REACH
Packaging content
ManualYes
Packaging data
Package width128 mm
Package depth128 mm
Package height60 mm
Package weight170 g

StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m)

Product code: USB110EXT2
£71.92 ex. VAT
116 in stock
