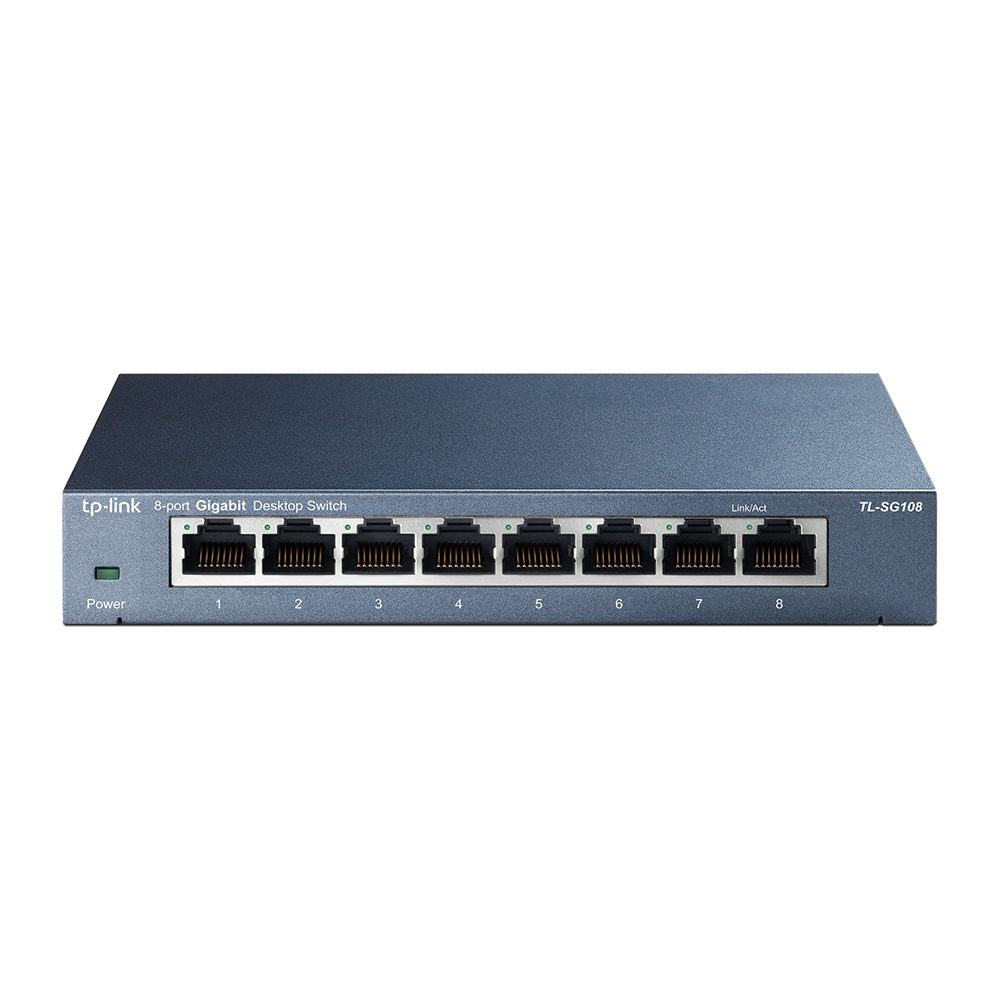

TP-LINK TL-SG108 network switch Unmanaged Black

Product Description

What This Product Does
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 72% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.


IGMP snoopingYes
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3x
Full duplexYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
10G supportNo
Data transmission
Multicast Listener Discovery (MLD) snoopingYes
Jumbo frames16000
Packet buffer memory1.5 MB
MAC address table4000 entries
Supported data transfer rates10/100/1000Mbps
Jumbo frames supportYes
Maximum data transfer rate2 Gbit/s
Packet buffer memory1.5 MB
Power connectorDC-in jack
Power consumption (max)3.31 W
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current0.6 A
DC input voltage9 V
Technical details
Product colourBlack
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorDC-in jack
IGMP snoopingYes
Multicast features
Multicast Listener Discovery (MLD) snoopingYes
Switching protocolsCSMA/CD
CertificationCE, FCC, RoHS
Packet buffer memory1.5 MB
Product colourBlack
LED indicatorsYes
CertificationCE, FCC, RoHS
Power LEDYes
LED indicatorsYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensions
Width158 mm
Depth101 mm
Height25 mm
Packaging data
User guideYes
Cables includedAC
Other features
Connectivity technologyWired
Bandwidth16 Gbit/s
Power LEDYes
Packet transfer speed14880pps/148800pps/1488000pps
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Packaging content
User guideYes
Cables includedAC

TP-LINK TL-SG108 network switch Unmanaged Black

Product code: TL-SG108
£21.70 ex. VAT
757 in stock
