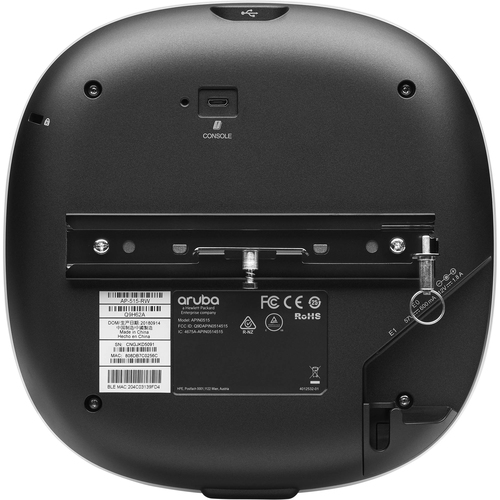

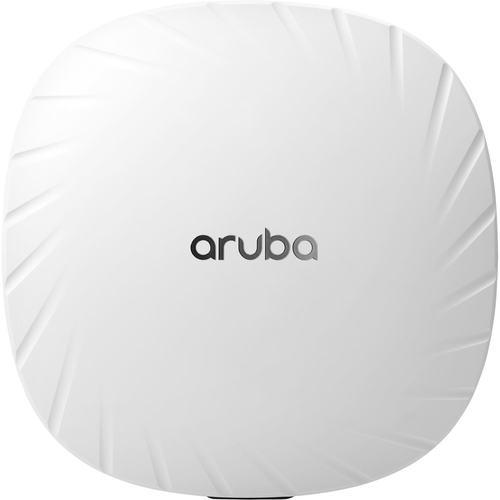

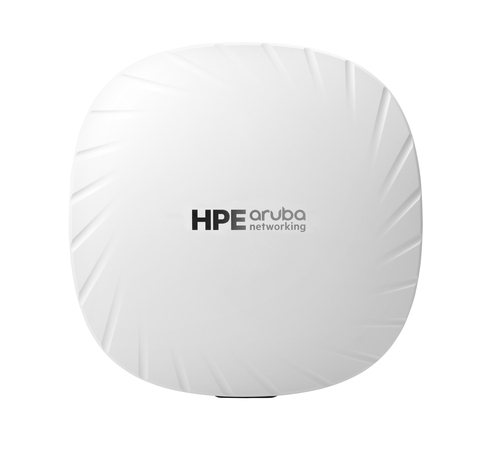

Hewlett Packard Enterprise Aruba AP-515 (RW) WLAN access point 5375 Mbit/s Power over Ethernet (PoE) White
Product Description
|
The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment.
The 510 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 4X versus 802.11ac APs.
In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation.
Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.
|
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s | | Maximum data transfer rate | 5375 Mbit/s | | Performance |
|---|
| 2.4 GHz | Yes | | 5 GHz | Yes | | Auto MDI/MDI-X | Yes | | Spread spectrum method | DSSS,OFDM | | Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz | | Modulation | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK | | Ethernet LAN data rates | 100,1000,2500 Mbit/s | | Maximum data transfer rate | 5375 Mbit/s | | MIMO | Yes | | Wireless LAN features |
|---|
| Modulation | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK | | Networking |
|---|
| Spread spectrum method | DSSS,OFDM | | Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz | | Security |
|---|
| Cable lock slot | Yes | | Security algorithms | WMM,WPA,WPA2 | | Features |
|---|
| 2.4 GHz | Yes | | 5 GHz | Yes | | Auto MDI/MDI-X | Yes | | Spread spectrum method | DSSS,OFDM | | Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz | | Modulation | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK | | Ethernet LAN data rates | 100,1000,2500 Mbit/s | | Maximum data transfer rate | 5375 Mbit/s | | MIMO | Yes | | Maximum data transfer rate (2.4 GHz) | 575 Mbit/s | | Maximum data transfer rate (5 GHz) | 4800 Mbit/s | | Ports & interfaces |
|---|
| USB connector type | USB Type-A | | USB 2.0 ports quantity | 1 | | Ethernet LAN (RJ-45) ports | 2 | | DC-in jack | Yes | | Power |
|---|
| Power consumption (typical) | 16 W | | Power over Ethernet (PoE) | Yes | | Design |
|---|
| Placement | Ceiling | | Product colour | White | | Cable lock slot | Yes | | Cable lock slot type | Kensington | | Antenna |
|---|
| Antenna type | Internal | | Antennas quantity | 4 | | Antenna gain level (max) | 7.5 dBi | | Antenna direction type | Omni-directional | | Antenna features | Integrated antenna | | Operational conditions |
|---|
| Operating relative humidity (H-H) | 5 - 93% | | Operating temperature (T-T) | 0 - 50 °C | | Storage temperature (T-T) | -40 - 70 °C | | Storage relative humidity (H-H) | 5 - 93% | | Weight & dimensions |
|---|
| Width | 200 mm | | Depth | 200 mm | | Weight | 810 g | | Height | 46 mm | | Package width | 230 mm | | Package depth | 220 mm | | Package height | 72 mm | | Package weight | 1.01 kg | | Packaging data |
|---|
| Package width | 230 mm | | Package depth | 220 mm | | Package height | 72 mm | | Package weight | 1.01 kg |
|
|
Hewlett Packard Enterprise Aruba AP-515 (RW) WLAN access point 5375 Mbit/s Power over Ethernet (PoE) White
Product code: Q9H62A
£820.85 ex. VAT
1,492 in stock
|
