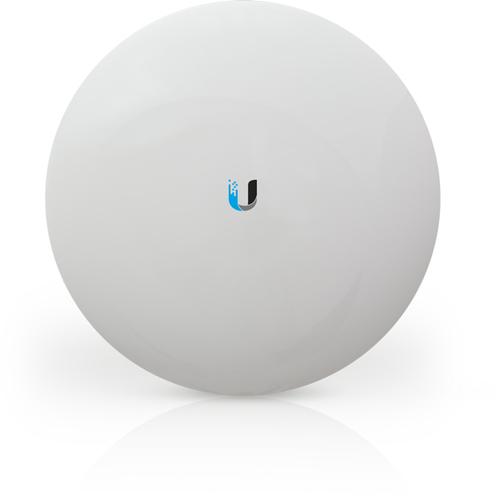

Ubiquiti Networks NanoBeam 5AC Gen 2 450 Mbit/s Network bridge White



Product Description

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio
The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoBeam® AC features enhanced protection against ESD events.

Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance
The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation
The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Data transmission
Maximum data transfer rate450 Mbit/s
Antenna
Antenna gain level (max)19 dBi
Wireless LAN features
Frequency band2.412 - 2.472, 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Modulation16-QAM,64-QAM,256-QAM,BPSK,QPSK
Antenna gain level (max)19 dBi
Network
Ethernet LANYes
Frequency band2.412 - 2.472, 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Ports & interfaces
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Security
Security algorithmsWPA2
Management features
Web-based managementYes
LED indicatorsLAN, Power, Signal strength
Features
Product typeNetwork bridge
Product colourWhite
LED indicatorsLAN, Power, Signal strength
Internal memory128 MB
Operational conditions
Operating temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-40 - 176 °F
Certificates
CertificationCE, FCC, IC, RoHS
Technical details
Product colourWhite
Operating temperature (T-T)-40 - 176 °F
Internal memory128 MB
Weight & dimensions
Weight530 g
Dimensions (WxDxH)189 x 189 x 125 mm

Ubiquiti Networks NanoBeam 5AC Gen 2 450 Mbit/s Network bridge White

Product code: NBE-5AC-GEN2
£92.87 ex. VAT
5 in stock
