What This Product Does

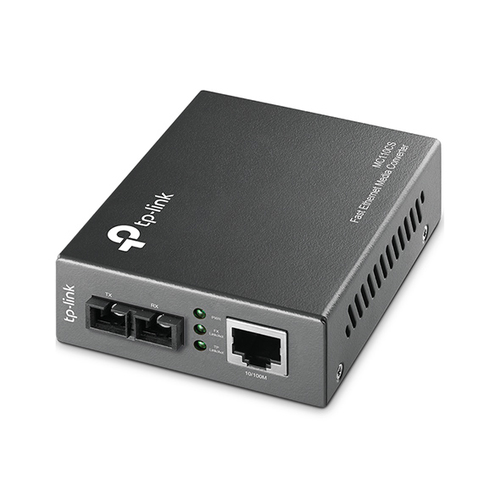

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
|
| Network |
|---|
| Fiber optic connector | SC | | Cabling technology | UTP 3, 4, 5e, 5 | | Networking standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3x | | Ethernet LAN data rates | 1000 Mbit/s | | Ethernet interface type | Gigabit Ethernet | | Auto MDI/MDI-X | Yes | | Maximum data transfer rate | 1000 Mbit/s | | Technical details |
|---|
| Wavelength | 1310 nm | | Maximum transfer distance | 20000 m | | Internal | No | | I/O ports | 1x 100M SC
1x 100M RJ45 | | Weight & dimensions |
|---|
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm | | Width | 94.5 mm | | Depth | 73 mm | | Height | 27 mm | | Package depth | 165 mm | | Package width | 204 mm | | Package height | 65 mm | | Ports & interfaces |
|---|
| Connectivity technology | Wired | | Ethernet LAN (RJ-45) ports | 1 | | Fiber ports quantity | 1 | | Fiber optic connector | SC | | Indication |
|---|
| LED indicators | Power, Speed | | Performance |
|---|
| Wavelength | 1310 nm | | Maximum transfer distance | 20000 m | | Design |
|---|
| LED indicators | Power, Speed | | Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | | Product colour | Black | | Certification | FCC, CE | | Internal | No | | Power |
|---|
| Power consumption (max) | 1.52 W | | Colour |
|---|
| Product colour | Black | | Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C | | Storage temperature (T-T) | -40 - 70 °C | | Operating relative humidity (H-H) | 10 - 90% | | Storage relative humidity (H-H) | 5 - 90% | | Packaging data |
|---|
| Package depth | 165 mm | | Package width | 204 mm | | Package height | 65 mm | | Certificates |
|---|
| Certification | FCC, CE | | Other features |
|---|
| Cabling technology | UTP 3, 4, 5e, 5 | | Full duplex | Yes | | Dimensions (WxDxH) | 94.5 x 73 x 27 mm | | Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | | I/O ports | 1x 100M SC
1x 100M RJ45 |
|
