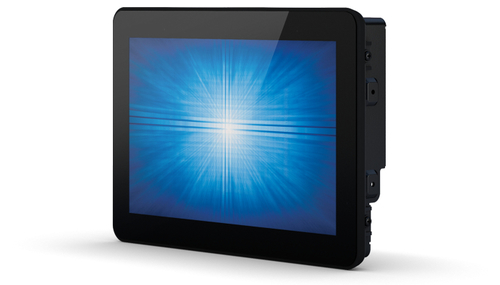

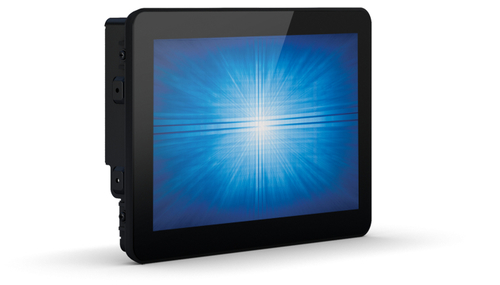

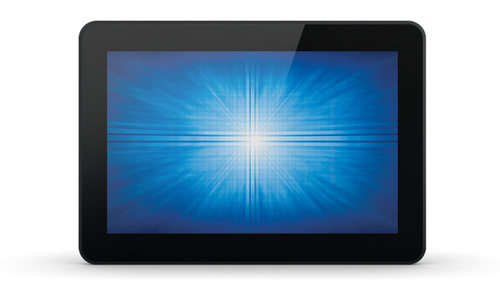

Elo Touch Solution ET1093L touch screen monitor 25.6 cm (10.1") 1280 x 800 pixels Black Multi-touch

Product Description

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.


The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Display Port and VGA video interfaces


Display number of colours262144 colors
Display technologyLCD/TFT
Display typeTFT-LCD
Viewing angle, vertical170°
Viewing angle, horizontal170°
Touchscreen technologyProjected capacitive system
Supported graphics resolutions640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 800
Display viewable area (HxV)216.96 x 135.6 mm
Display resolution1280 x 800 pixels
Digital vertical frequency50 - 75 Hz
Digital horizontal frequency30 - 60 kHz
Backlight typeLED
Aspect ratio16:10
Display diagonal25.6 cm (10.1")
Contrast ratio (typical)800:1
Display brightness350 cd/m²
Response time25 ms
Product colourBlack
Touch technologyMulti-touch
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages8
Touchscreen technologyProjected capacitive system
Mean time between failures (MTBF)50000 h
Ports & interfaces
HDMI ports quantity1
DisplayPorts quantity1
VESA mountingYes
Wall mountableYes
Panel mounting interface75 x 75 mm
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (off)0.5 W
Power supply typeAC/DC
Power consumption (typical)6.1 W
Power consumption (PowerSave)0.7 W
Operational conditions
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Operating altitude0 - 3658 m
Non-operating altitude3658 - 12192 m
Technical details
Power supply typeAC/DC
Supported graphics resolutions640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 800
Package weight2.6 kg
Mean time between failures (MTBF)50000 h
Product colourBlack
Weight & dimensions
Width255.8 mm
Height178.5 mm
Depth36.9 mm
Weight1.2 kg
Packaging data
Package width336 mm
Package depth175 mm
Package height262 mm
Package weight2.6 kg

Elo Touch Solution ET1093L touch screen monitor 25.6 cm (10.1") 1280 x 800 pixels Black Multi-touch

Product code: E321195
£277.56 ex. VAT
39 in stock
