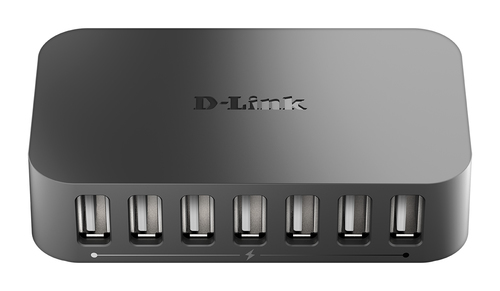

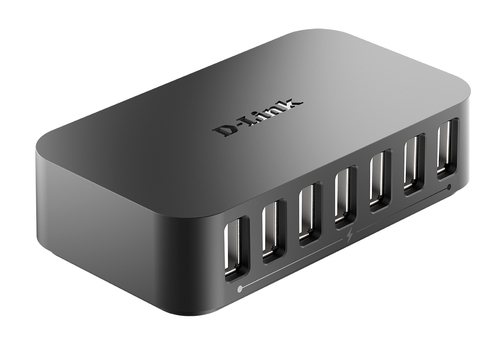

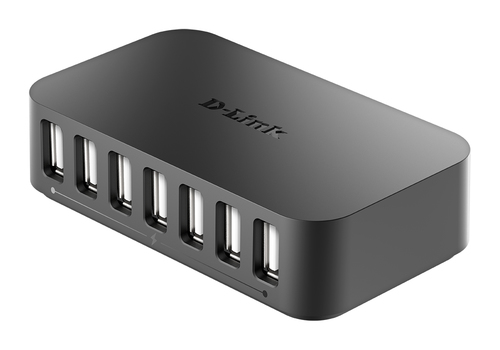

D-Link Hi-Speed USB 2.0 7-Port Hub



Product Description

The D-Link QuickMedia DUB-H7 2.0 is a Hi-Speed USB 2.0 7-port hub that is backward compatible with USB 1.0 and 1.1. The DUB-H7 allows connection of up to seven additional USB peripherals or devices to your USB ready PC or Mac.
Designed to provide quick and easy access, the D-Link DUB-H7 provides seven Type A USB downstream ports for connecting USB peripherals, devices, or other USB hubs. A single Type B upstream port connects the DUB-H7 to the host computer or another USB hub, enabling up to 127 devices to be connected by cascading multiple hubs.

Configured directly by the operating system, the D-Link DUB-H7 operates seamlessly with both Microsoft WindowsTM and Apple MacintoshTM Operating Systems.

Diagnostic LEDs provide port status for each port and power status. The DUB-H7 includes an Installation Guide, a 6-foot Hi-Speed USB 2.0 certified A to B cable, and power adapter.

The DUB-H7 is backward compatible with USB 1.0 and USB 1.1, allowing you to connect all your existing USB peripherals and integrates easily in your existing network at home or in the office.

Features:
• PC & Mac Compatible
• Up to 40 Times Faster* than USB 1.1
• Backwards Compatible with USB 1.1

Specifications

Ports & interfaces
I/O ports7x downstream USB Type A Ports
1x upstream USB Type B Port
System requirements
Minimum system requirementsUSB
Compatible operating systemsWindows XP/ME/2000/98SE
Mac OS X 10.1 or later
Packaging data
Package width150 mm
Package depth225 mm
Package height68 mm
Package weight465.5 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
Certificates
SafetyCE, FCC Class B, VCCI, UL
Logistics data
Shipping (inner) case width31.4 cm
Shipping (inner) case length36 cm
Shipping (inner) case height25.3 cm
Quantity per shipping (inner) case10 pc(s)
Pallet width110 cm
Pallet length120 cm
Shipping (inner) case net weight2.51 kg
Weight & dimensions
Package width150 mm
Package depth225 mm
Package height68 mm
Package weight465.5 g
Technical details
Shipping (inner) case gross weight4.58 kg
Quantity per pallet (sea)630 pc(s)
Quantity per pallet (air)360 pc(s)
Pallet height (sea)193 cm
Pallet height (air)114 cm
Pallet gross weight (sea)308.5 kg
Pallet gross weight (air)176.3 kg
Number of cartons per pallet (sea)63
Number of cartons per pallet (air)36
Other features
SafetyCE, FCC Class B, VCCI, UL
InterfaceUSB, OHCI, EHCI
Power requirements12.6W, 3 A @ 5 VDC
Mac compatibilityYes
Dimensions (WxDxH)99.6 x 59.5 x 25.7 mm
Compatible operating systemsWindows XP/ME/2000/98SE
Mac OS X 10.1 or later

D-Link Hi-Speed USB 2.0 7-Port Hub

Product code: DUB-H7/B
£22.89 ex. VAT
Call for ETA
