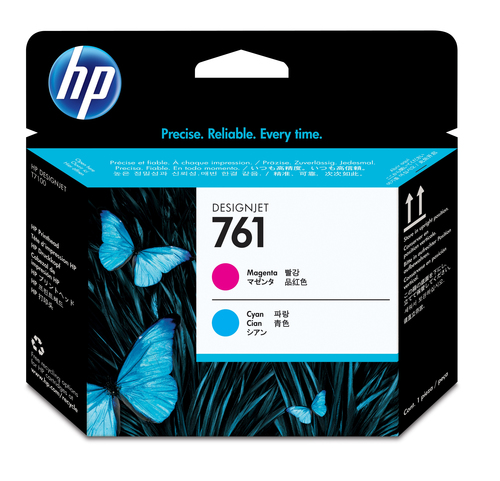

HP 761 Magenta/Cyan Designjet Printhead



Product Description

Designed for customers who want to produce a range of applications, including low-cost CAD monochrome drawings and GIS documents to high-quality renders and presentations. HP 761 Magenta/Cyan DesignJet Printhead produces crisp, accurate, cost-effective drawings and impressive, high-quality colour presentations. Enjoy low-maintenance, high-productivity printing, so you can print with ease and deliver with confidence.

Compatible Printers: HP DesignJet T 7100, HP DesignJet T 7100 Series, HP DesignJet T 7200, HP DesignJet T 7100 60 inch, HP DesignJet T 7100 42 inch

Specifications

Performance
OEM codeCH646A
ColourYes
Printing coloursCyan, Magenta
Print technologyInkjet
Country of originSingapore
CompatibilityHP DesignJet T7100 Printer
Weight & dimensions
Width28 mm
Depth143 mm
Height132 mm
Weight70 g
Package width28 mm
Package depth143 mm
Package height132 mm
Package weight110 g
Package dimensions (WxDxH)28 x 143 x 132 mm
Packaging data
Package width28 mm
Package depth143 mm
Package height132 mm
Package weight110 g
Package dimensions (WxDxH)28 x 143 x 132 mm
Technical details
ColourYes
Weight70 g
Storage temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)8 - 90%
Printing coloursCyan, Magenta
Print technologyInkjet
Package weight110 g
Package dimensions (WxDxH)28 x 143 x 132 mm
Operating temperature (T-T)20 - 25 °C
Operating relative humidity (H-H)40 - 55%
Country of originSingapore
Stacking number for carton8
Quantity per pallet1920 pc(s)
Quantity per box1 pc(s)
Print head swath2.24 cm (0.88")
Print head nozzles2112
Pallet dimensions (W x D x H)1219 x 1016 x 1325 mm
Number of layers per pallet10
Number of cartons per pallet80
Operational conditions
Storage temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)8 - 90%
Operating temperature (T-T)20 - 25 °C
Operating relative humidity (H-H)40 - 55%
Logistics data
Pallet weight248 kg
Quantity per pallet1920 pc(s)
Pallet dimensions (W x D x H)1219 x 1016 x 1325 mm
Number of layers per pallet10
Number of cartons per pallet80
Other features
Pallet weight248 kg
OEM codeCH646A
Package dimensions (WxDxH)28 x 143 x 132 mm
Stacking number for carton8
Quantity per pallet1920 pc(s)
Quantity per box1 pc(s)
Print head swath2.24 cm (0.88")
Print head nozzles2112
Pallet dimensions (W x D x H)1219 x 1016 x 1325 mm
Number of layers per pallet10
Number of cartons per pallet80

HP 761 Magenta/Cyan Designjet Printhead

Product code: CH646A
£125.40 ex. VAT
15 in stock
