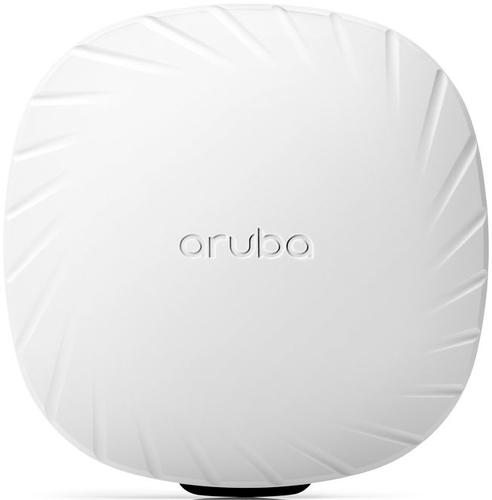

HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

Product code: R8M98A
  • HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point
  • 2.4 GHz
  • 5 GHz
  • 1490 Mbit/s
  • WPA3
  • WPA
  • WPA2
  • 1000 Mbit/s

HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

Product code Alt: R8M98A
HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point

Product Description

HPE Aruba Networking 503 Series Campus Access Points deliver affordable Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 503 series delivers cost-effective and reliable Wi-Fi for low to medium density environments. The 503 series is Wi-Fi CERTIFIED and supports 802.11ax features; OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 503 series includes a limited lifetime warranty.

What is new supporting point:
Flexible management with AI-powered HPE Aruba Networking Central
Available as optional eco-friendly 10-packs
Cost-effective Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
It supports Wi-Fi 6 (802.11ax) features including OFDMA for enhanced multi-user efficiency and WPA and Enhanced Open (OWE) for greater security
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security

Benefits

Better Performance with Wi-Fi 6
  • HPE Aruba Networking 503 Series Campus Access Points deliver a maximum speed of 1.49 Gbps with up to 2 spatial streams and 80 MHz channels (HE80).
    Wi-Fi CERTIFIED with support for Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) to drive improved efficiency. Handles multiple Wi-Fi 6 clients on each channel simultaneously, regardless of device or traffic type.
    Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives a good radio signal.
Flexible Management and Simplified Access
  • HPE Aruba Networking 503 Series Campus Access Points can be managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
    Quick and easy deployment at branch offices or remote work sites without on-site technical expertise using zero touch provisioning (ZTP).
    It provides seamless support for Bluetooth 5 and Zigbee wireless protocols using an optional IoT expansion radio (purchase separately).
Secure Access
  • HPE Aruba Networking 503 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
    The target wake time (TWT), part of Wi-Fi 6, establishes a schedule for client communications to save power and reduce airtime contention.
    It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PEFs).
    The PEF automatically applies policies based on user role, device type, applications and location and dynamically segments traffic.
    For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.

Specifications

Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
Power
Power over Ethernet (PoE)
Yes
Security
Security algorithms
WPA3, WPA, WPA2
Antenna
Antenna type
Internal
Design
Product colour
White
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1490 Mbit/s

Customer Reviews

No reviews have been written for this product yet.

[1] Bluetooth is a trademark owned by its proprietor and used by Hewlett Packard Enterprise under license. All third-party marks are property of their respective owners.
