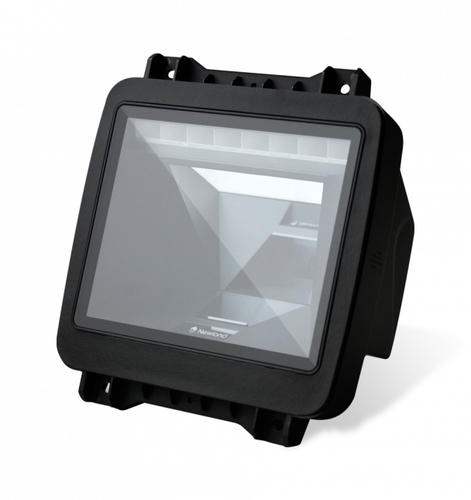

Newland FM8080-20 barcode reader Barcode module bar barcode readers 1D/2D CMOS Black

Product code: NLS-FM8080-20
  • Newland FM8080-20
  • Barcode module bar barcode readers
  • 1D/2D
  • CMOS
  • Codabar
  • Code 11
  • Code 128
  • Code 25 (IR 2 of 5)
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • MSI
  • UPC-E
  • Aztec Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • MicroPDF417
  • PDF417
  • QR Code
  • Wired

Newland FM8080-20 barcode reader Barcode module bar barcode readers 1D/2D CMOS Black

Product code Alt: NLS-FM8080-20
Newland FM8080-20 barcode reader Barcode module bar barcode readers 1D/2D CMOS Black

Product Description

Superior retail scanning at your convenience.
The FM80 Salmon's sky-high motion tolerance of 3,5 m/s for retail codes makes for fast and efficient scanning that helps avoid congestion at checkout. All backed up by our top megapixel scan technology.

High Motion Tolerance.
The FM80 Salmon can capture EAN codes moving at 3.5 meters per second. This is especially significant for the experienced user at a static point of sale (POS), for quickly processing baskets of goods and reducing check-out queuing.

Large Scan Window.
Its large scan window and small depth-of-field helps capture barcodes even when the goods are bigger, or the product is being presented very close to the scan window. An additional benefit from a large window in fast-paced retail scanning, is that the user, regardless of experience, doesn’t need to be precise when lining up a code for a successful read.

Comfortable Experience.
The FM80 Salmon’s short & long-range illumination and anti-glare are designed for customer-facing applications, such as retail self-service and POS scanning. They prevent the user from being dazzled by sharp illumination and reflections, ensuring a comfortable user experience. Additionally, the FM80 Salmon has a good performance scanning from customer phone-screens.

Mounting and integration.
As a fixed and mountable scanner that is designed to become part of an installation that often requires the scanner to be flush, the FM80 Salmon has 6 anchor points on the front edge of its window. The IP52 rating requires additional protection from the elements for an exposed application. With this in mind, we have added a soft inlay around the edge of the window for a more comfortable fit into some enclosures.

Superior Scanning Performance.
As another example of Newland's megapixel scanning technology, the FM80 Salmon delivers stunning performance on decoding even poor-quality and damaged barcodes. Additional benefits for megapixel scanning enable reliable decoding on the higher density 2D barcodes featured on alcohol, tobacco and pharmaceutical products.

Double reading prevention.
The FM80 Salmon uses active sensors that know the difference between a code that’s being presented to be read from one that is not. It knows the difference between a deliberate swipe of a code compared to a code being static for longer than the natural decode time out session. This helps prevent accidental misreads of the same barcode twice.

Features

  • Superior Scanning Performance
  • Comfortable Experience
  • Large Scan Window
  • High Motion Tolerance
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Standard interfaces
    RS-232, USB
    Weight & dimensions
    Weight
    448.3 g
    Scanning
    Type
    Barcode module bar barcode readers
    Scanner type
    1D/2D
    Sensor type
    CMOS
    Linear (1D) barcodes supported
    Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 39, Code 93, EAN-13, EAN-8, MSI, UPC-E
    2D (matrix & stacked) barcodes supported
    Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
    Performance
    Product colour
    Black
