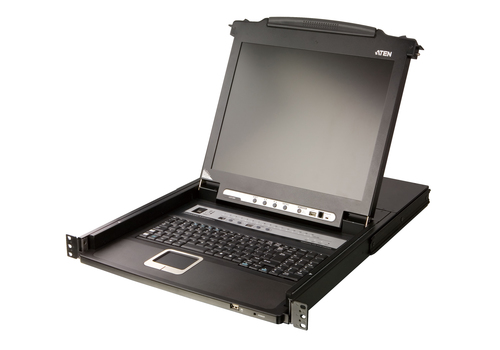

ATEN CL5716MW-ATA-EE KVM switch Rack mounting Black

£1,771.93 excl. VAT

ATEN CL5716MW-ATA-EE KVM switch Rack mounting Black

Product code: CL5716MW-ATA-EE

ATEN CL5716MW-ATA-EE
1920 x 1200 pixels
WUXGA
Rack mounting
15.6 W
1U
Black

ATEN CL5716MW-ATA-EE KVM switch Rack mounting Black

Product code Alt: CL5716MW-ATA-EE

Product Description

The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.

The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Features

Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

Integrated KVM console with 17", 17.3" or 19" LED-backlit LCD monitor in a Slideaway™ housing

Available with or without Fingerprint Identification Reader1

Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers

Daisy-chain up to 31 additional units – control up to 512 computers from a single console

Dual Interface – supports computers and console with PS/2 or USB keyboards and mice

USB port allows each computer to access USB peripherals2 (inapplicable to CL5716MW)

LCD module rotates up to 120 degrees for a more comfortable viewing angle

Multiplatform support – Windows, Linux, Mac, and Sun

Supports multimedia USB keyboards for PC, Mac and Sun

Auto PS/2 and USB interface detection

Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere

Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)

Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5716M / CL5716FM / CL5716N) and 1920 x 1080 @ 60 Hz (CL5716MW)

No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus

Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position

Port names automatically reconfigured when station sequence is changed

Two level password security – only authorized users can view and control computers

Supports one administrator and four user accounts with separate profiles

Auto Scan mode enables continuous monitoring of user-selected computers

Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation

Hot pluggable

Beeper on / off via hotkey and OSD

Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable

Optional rack mount kits available including easy installation options

Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Specifications

Display
Built-in display	Yes
Ports & interfaces
Number of computers controlled	512
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	VGA (D-Sub)
Design
Rack mounting	Yes
Product colour	Black
Performance
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
