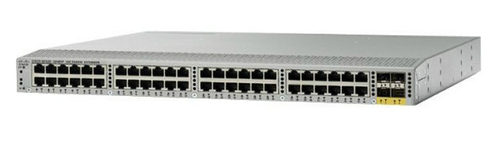

Cisco 2232PP, Refurbished Grey 10, 100, 1000 Mbit/s

£4,557.58 excl. VAT

Cisco 2232PP, Refurbished Grey 10, 100, 1000 Mbit/s

Product code: N2K-C2232PP10GE-RF

Cisco 2232PP, Refurbished Grey 10, 100, 1000 Mbit/s

Product code Alt: N2K-C2232PP10GE-RF

Product Description

- 32 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) server access ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
- 8 10 Gigabit Ethernet and FCoE uplink ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
- Low-latency, cut-through switching, ideal for 10 Gigabit Ethernet server and pass-through blade server connectivity
- Unified fabric environments
- IEEE Data Center Bridging (DCB)
- Host PortChannel and vPC (up to 8 PortChannel members per PortChannel, with no restriction on the number of PortChannels)
- ISSU
- Highly scalable virtual modular system with up to 384 10 Gigabit Ethernet and FCoE ports
- Compact 1RU form factor
- Front-to-back cooling compatible with data center hot-aisle and cold-aisle designs, with all switch ports at the rear of the unit in close proximity to server ports
- Hardware capable of back-to-front cooling (requires new power supply and fan tray)
- Dual-redundant power supplies included in default configuration
- Hot-swappable fan trays
- All user-serviceable components accessible from the front panel
- Hardware capable of Gigabit Ethernet on all ports (requires new software)
- Operates as a remote I/O module, extending the switch fabric for Cisco Nexus 5010 and 5020 Switches
- Can be mixed and matched with different types of Cisco Nexus 2000 Series Fabric Extenders to the same parent switch to support various types of connectivity
- Zero-touch provisioning, including configuration and upgrade

Specifications

Performance
VLAN tagging	Yes
Jumbo frames support	Yes
Flow control support	Yes
Duplex system	Full
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum transfer distance	10000 m
Data transfer rate	10000 Mbit/s
Auto-negotiation	Yes
Technical details
VLAN tagging	Yes
Jumbo frames support	Yes
Flow control support	Yes
Duplex system	Full
Ethernet LAN data rates	10,100,1000 Mbit/s
Operating temperature (T-T)	32 - 104 °F
On/off switch	Yes
LED indicators	Yes
Maximum transfer distance	10000 m
Data transfer rate	10000 Mbit/s
Auto-negotiation	Yes
Compliance certificates	RoHS
Network
Quality of Service (QoS) support	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u
Ports & interfaces
Fiber ports quantity	8
Fiber optic connector	SFP+
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	32
Design
On/off switch	Yes
LED indicators	Yes
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 EC 60950-1AS/NZS 60950-1GB4943
Product colour	Grey
Power
Power consumption (max)	270 W
AC input voltage	90-264 V
AC input frequency	50 - 60 Hz
Input current	2.5 A
Power consumption (typical)	210 W
Output current	20 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Weight & dimensions
Width	439.4 mm
Depth	449.6 mm
Height	43.7 mm
Weight	8.3 kg
Colour
Product colour	Grey
Certificates
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 EC 60950-1AS/NZS 60950-1GB4943
Other features
Operating temperature (T-T)	32 - 104 °F
