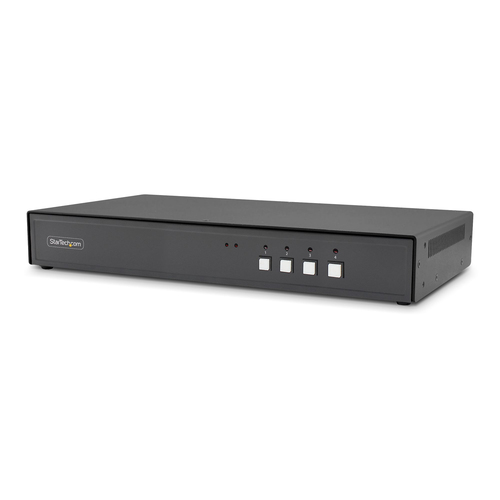

StarTech.com Secure 4-Port KVM Switch, DisplayPort, 4K 30Hz, NIAP 4.0 Desktop KVM, Metal Housing, Multi-View Preview Screen, CAC, Made in the USA

Product code: CK4-PS104C
  • StarTech.com Secure 4-Port KVM Switch
  • DisplayPort
  • 4K 30Hz
  • NIAP 4.0 Desktop KVM
  • Metal Housing
  • Multi-View Preview Screen
  • CAC
  • Made in the USA
  • 3840 x 2160 pixels
  • 4K Ultra HD
  • Black

StarTech.com Secure 4-Port KVM Switch, DisplayPort, 4K 30Hz, NIAP 4.0 Desktop KVM, Metal Housing, Multi-View Preview Screen, CAC, Made in the USA

Product code Alt: CK4-PS104C
StarTech.com Secure 4-Port KVM Switch, DisplayPort, 4K 30Hz, NIAP 4.0 Desktop KVM, Metal Housing, Multi-View Preview Screen, CAC, Made in the USA

Product Description

Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored

Operate multiple secure systems from a single workstation with the NIAP-certified KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over up to four computers with a 4K 30Hz display and a dedicated multi-view preview screen for monitoring all systems simultaneously.

NIAP Certified Multi-System Control

Manage up to four DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, and a 4K 30Hz monitor, with a dedicated preview screen output. Status LEDs on the console ports, CAC port, and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.

This secure KVM complies with the following protection profiles and modules:

• Protection Profile for Peripheral Sharing Device (PSD), Version 4.0
• PP-Module for Analog Audio Output Devices, Version 1.0
• PP-Module for User Authentication Devices, Version 1.0
• PP-Module for Keyboard/Mouse Devices, Version 1.0
• PP-Module for Video/Display Devices, Version 1.0

Built-In CAC Access and Tamper Protection

A dedicated and configurable Common Access Card port enables secure smart card logins across all connected systems without the need to attach readers to each machine. The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.

Enterprise-Grade Security and Reliability

Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.

Features

  • Secure Dual-Monitor KVM Switch: Control up to four DisplayPort desktops or servers from one mouse, keyboard, monitor, and a dedicated preview screen; Features LEDs for user console ports, Common Access Card (CAC) port, and port selection indicators
  • NIAP PSD 4.0 Certified: Prevents data transfer or leakage, isolates systems completely, and has no internal memory or storage that retains or shares information; Ensures secure operation in high-security environments managing sensitive or classified data
  • Dedicated and Configurable Common Access Card Port: Passes CAC signals through the KVM to connected systems, enabling secure smart card login and allowing IT professionals to manage secure access without attaching readers directly to each machine
  • Tamper Protection System: Anti-Tamper switches protect the KVM by detecting physical intrusion attempts, which disable all functionality and trigger visual and audible alerts; A tamper-evident seal offers visual indication if the KVM was previously opened
  • The IT Pro's Choice: Our Secure KVM switches are NIAP approved, built in the USA, and designed for enterprise-grade security and reliability; Trusted by leading IT, government, and military security teams
    •

    Specifications

    Display
    Built-in display
    No
    Ports & interfaces
    Number of computers controlled
    4
    Keyboard port type
    USB
    Mouse port type
    USB
    Video port type
    DisplayPort
    Console ports
    3.5mm headphone, DisplayPort, USB A
    Design
    Rack mounting
    No
    Product colour
    Black
    Performance
    HD type
    4K Ultra HD
    Maximum resolution
    3840 x 2160 pixels
