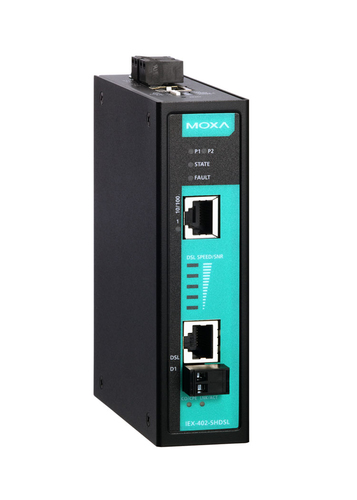

Moxa IEX-402-SHDSL-T network extender Network transmitter & receiver Black

Product code: 46175
  • Moxa IEX-402-SHDSL-T
  • Network transmitter & receiver
  • 10/100Base-T(X)
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • Black
  • 12-48 V
  • 0.36 A

Moxa IEX-402-SHDSL-T network extender Network transmitter & receiver Black

Product code Alt: 46175
Moxa IEX-402-SHDSL-T network extender Network transmitter & receiver Black

Product Description

Features and Benefits
- Automatic CO/CPE negotiation reduces configuration time
- Turbo mode connection, up to 15.3 Mbps over twisted-pair copper wires
- Link Fault Pass-through (LFP) support and interoperable with Turbo Ring and Turbo Chain
- Link quality indicators for simple troubleshooting
- Easy network management by web browser, Telnet/serial console, Windows utility, ABC-01, and MXview

Introduction
The IEX-402 series is an industrial managed Ethernet extender designed with one 10/100BaseT(X) and one DSL port. The Ethernet extender provides a point-to-point extension over twisted copper wires based on G.SHDSL.bis and VDSL2 standards. The IEX-402-SHDSL supports data rates of up to 15.3 Mbps with a long transmission distance of up to 8 km, while the IEX-402-VDSL2 provides data rates of up to 100 Mbps with transmission distance of up to 3 km.

The IEX-402 series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power input make it ideal for installation in industrial applications.

To simplify configuration, the IEX-402 series uses CO/CPE auto negotiation. By factory default, the device will automatically assign CPE status to one of each pair of IEX devices. In addition, Link Fault Pass-through (LFP) and network redundancy interoperability enhance the reliability and accessibility of communication networks. Advanced managed and monitored functionality through MXview, including a virtual panel, improve the user experience for quick trouble shooting.

Features

  • Automatic CO/CPE negotiation reduces configuration time
  • Link Fault Pass-Through (LFPT) support and interoperable with Turbo Ring and Turbo Chain
  • LED indicators to simplify troubleshooting
  • Easy network management by web browser, Telnet/serial console, Windows utility, ABC-01, and MXview
    •

    Specifications

    Design
    Product colour
    Black
    Performance
    Type
    Network transmitter & receiver
