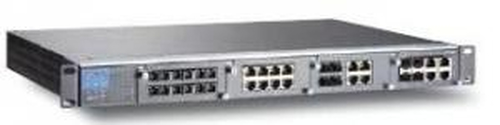

Moxa PT-7828-F-HV-HV network switch Managed L3 Black

Product code: 43063
  • Moxa PT-7828-F-HV-HV
  • Managed
  • L3

Moxa PT-7828-F-HV-HV network switch Managed L3 Black

Product code Alt: 43063
Moxa PT-7828-F-HV-HV network switch Managed L3 Black

Product Description

General Features and Benefits
- Layer 3 switching functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks;
- IPv6 Ready logo awarded (IPv6 Logo Committee certified);
- IEEE 1588 PTP (Precision Time Protocol) for precise time synchronization of networks;
- DHCP Option 82 for IP address assignment with different policies;
- Modbus/TCP industrial Ethernet protocol supported;
- Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP;
- IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols;
- IEEE 802.3ad, LACP for optimum bandwidth utilization;
- Bandwidth management prevents unpredictable network status;
- Lock port to restrict access to authorized MAC addresses;
- Multi-port mirroring for online debugging;
- Automatic warning by exception through email, relay output;
- Automatic recovery of connected devices' IP addresses;
- Line-swap fast recovery;
- Configurable by web browser, Telnet/serial console, Windows utility, and ABC-01 automatic backup configurator;
- Works with MXview industrial network management software.

Cyber-security Features
- User passwords with multiple levels of security protect against unauthorized configuration;
- SSH/HTTPS is used to encrypt passwords and data;
- Lock switch ports with 802.1x port-based network access control so that only authorized clients can access the port;
- Disable one or more ports to block network traffic;
- 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports;
- Secure switch ports so that only specific devices and/or MAC addresses can access the ports;
- Radius/TACACS+ allows you to manage passwords from a central location (available in Q1 Y2011);
- SNMPv3 provides encrypted authentication and access security.

Introduction
The PowerTrans PT-7828 switches are high performance Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks. The PT-7828 switches are also designed to meet the strict demands of power substation automation systems (IEC 61850-3, IEEE 1613), traffic control systems (NEMA TS2), and railway applications (EN50155/EN50121-4).

The PT-7828's Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling and wiring costs. The modular design of the PT-7828 makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 fast Ethernet ports. Optional front or rear wiring makes the PT-7828 switches suitable for a variety of applications.

Description
IEC 61850-3 Layer 3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, and 1 slot for Gigabit Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature.

Features

  • IEC 61850-3, IEEE 1613 (power substations) and EN 50121-4 (railway applications) compliant
  • Complies with a portion of EN 50155 specifications
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),
  • Gigabit Ethernet recovery time < 50 ms
  • RSTP/STP, and MSTP for network redundancy
  • Up to 12 ports with M12 connectors
  • Isolated redundant power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
  • Supports multicast routing protocols PIM-DM and DVMRP
  • -40 to 85°C operating temperature range
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    24
    Network
    Networking standards
    IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
    10G support
    No
    Management features
    Switch type
    Managed
    Design
    Stackable
    Yes
