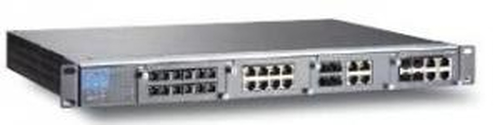

Moxa PT-7828-F-48-HV network switch Managed L3 Black

Product code: 43061
  • Moxa PT-7828-F-48-HV
  • Managed
  • L3

Moxa PT-7828-F-48-HV network switch Managed L3 Black

Product code Alt: 43061
Moxa PT-7828-F-48-HV network switch Managed L3 Black

Product Description

The PowerTrans PT-7828 switches are high performance Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks. The PT-7828 switches are also designed to meet the strict demands of power substation automation systems (IEC 61850-3, IEEE 1613), traffic control systems (NEMA TS2), and railway applications (EN50155/EN50121-4).
IEC 61850-3 Layer 3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, and 1 slot for Gigabit Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (48 VDC and 88-300 VDC or 85-264 VAC), -40 to 85?C operating temperature

Features

  • IEC 61850-3, IEEE 1613 (power substations) and EN 50121-4 (railway applications) compliant
  • Complies with a portion of EN 50155 specifications
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),
  • Gigabit Ethernet recovery time < 50 ms
  • RSTP/STP, and MSTP for network redundancy
  • Up to 12 ports with M12 connectors
  • Isolated redundant power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
  • Supports multicast routing protocols PIM-DM and DVMRP
  • -40 to 85°C operating temperature range
    •

    Specifications

    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity
    28
    Network
    Networking standards
    IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support
    No
    Management features
    Switch type
    Managed
    Design
    Stackable
    Yes
