Kramer Electronics VP-427X1 video scaler

Product code: VP-427X1
  • Kramer Electronics VP-427X1
  • Black
  • 640 x 480
  • 800 x 600
  • 1024 x 768
  • 1280 x 1024
  • 1280 x 720
  • 1280 x 768
  • 1280 x 800
  • 1360 x 768,...
  • Aluminium
  • Buttons
  • 720p
  • 1080p
  • 1.4/2.2

Kramer Electronics VP-427X1 video scaler

Product code Alt: VP-427X1
Kramer Electronics VP-427X1 video scaler

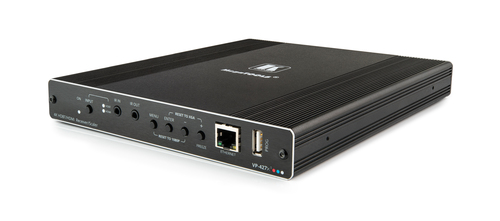

  • Main image

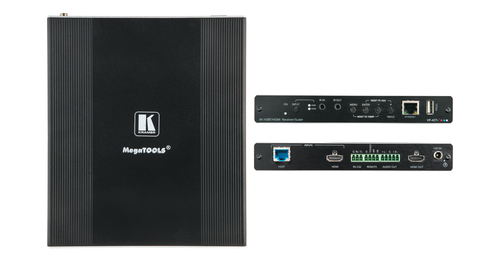

  • Alternate product image

Product Description

VP-427X1 is a high-performance auto-switcher/scaler receiver with 1 HDBaseT inputs and a local HDMI input for 4K HDMI™ over extended-reach HDBaseT. It supports automatic and manual glitch-free switching between the inputs, and up- or down-scaling to any resolution up to 4K@60Hz (4:4:4). The output scaling automatically matches the resolution of the HDMI display on the output, or it can be manually set by the user. VP-427X1 enables extending video signals up to 180m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

- Comprehensive Receiver/Scaler — Scales signals of all standard resolutions to any resolution, up to 4K@60Hz (4:4:4), for routing to the HDMI output. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
- HDMI Signal Extension — HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
- Audio De–embedding — Analog balanced stereo output for de–embedding the audio to speakers.
- Data Tunneling — Extend RS–232, IR, and Ethernet over the HDBaseT line.
- Built–in Automated Control — Includes easy connection to occupancy sensors and contact closure switches.
- CEC Support — Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
- Cost–Effective and Convenient Control Options — Ethernet and RS–232 serial ports, and local control via front panel input selection and OSD menu buttons.
- ProcAmp Control — Contrast, brightness, color, etc.
- Convenient Unit Control and Configuration Options — Local control via front panel source switching buttons and OSD menu. Distance control via RS–232 serial commands transmitted by a PC, touch screen system or other serial controllers.
- Easy, Cost–effective Maintenance — Local firmware upgrade via USB connector.
- Easy and Elegant Installation — Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Features

  • Powered by PoE or by a local power supply
  • Resolutions up to 4K@60Hz (4:4:4)
  • Auto–switching inputs
  • Ethernet, IR, RS–232 control and tunneling
  • CEC auto display control
  • HDCP 2.2 & 1.4 compliant
    •

    Specifications

    Features
    Product colour
    Black
    Scaled resolutions
    640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 768, 1280 x 800, 1360 x 768, 1366 x 768, 1400 x 1050, 2048 x 1080, 2560 x 1080, 2560 x 1440, 2560 x 1600
