Roland VC-100UHD

£3,141.00 excl. VAT

Roland VC-100UHD

Product code: VC-100UHD

Roland VC-100UHD
Black
LCD
640 x 480 (VGA)
1920 x 1080 (HD 1080)
1920 x 1200 (WUXGA)
2560 x 1440
3840 x 2160
4096 x 2160
720p
1080i
1080p
2160p
240 Hz
10 bit

Roland VC-100UHD

Product code Alt: VC-100UHD

Product Description

Scale, Convert, and Stream

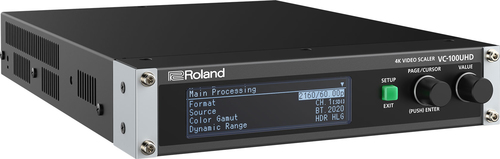

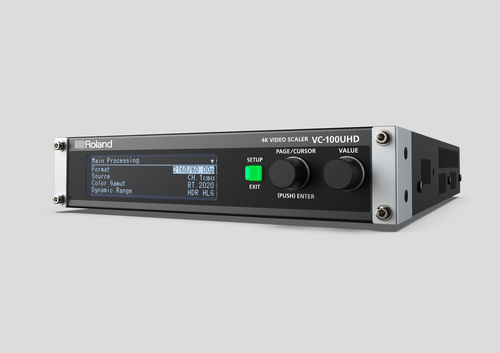

Introducing the Roland VC-100UHD, a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland’s Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.

Process Images for Multiple Audiences at Once
Using the VC-100UHD, it’s a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.

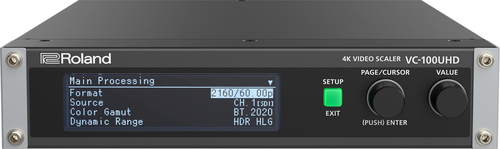

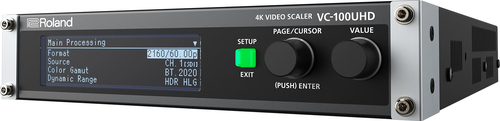

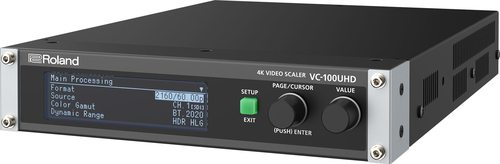

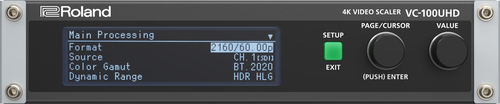

Front Panel Graphic LCD
With a high-precision graphic LCD and a sophisticated menu structure, all functions can be operated and set using the VC-100UHD itself without an external control device. On the HDMI input signal status screen, you can check the resolution, frame rate, HDCP status, color space, bit depth, color gamut, dynamic range, and audio level of each 8 channels input. In addition, the system message log screen makes troubleshooting easier.

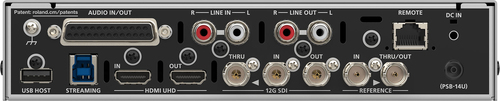

Rear panel
- 12G-SDI IN, OUT, THRU
- HDMI IN, OUT (THRU)
- REFERENCE IN, OUT/THRU
- Balanced AUDIO IN/OUT
- LINE IN, OUT (L/R)
- REMOTE (LAN)
- DC IN (24V)
- USB

The Ultra-Reliable Ultra Scaler
The VC-100UHD features Roland's revolutionary Ultra Scaler, the same no-compromise, ultra-reliable professional video processor found in the flagship V-600UHD 4K video switcher. Backed by a lightning-fast processing engine, Ultra Scaler delivers premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.

Roland's Ultra Scaler supports:
- 10-bit 4:4:4 pixel-accurate color
- Rec. 601, 709 and 2020 wide color gamut
- High dynamic range processing and conversion
- 1080p high frame rate (HFR) video at 100, 120, 144, 200, and 240 Hz
- HDMI input only
- Native DCI Digital Cinema System 4K (4096) resolution

YCbCr4:2:2 10-bit HDMI/SDI Input, Output, and 10-bit Processing – Lossless Conversion
When setting YCbCr4:2:2, 10-bit input / output and 10-bit internal processing maintain the fineness of the color and gradation of the input material. Compared to 8-bit processing, it can display more colors and express a more natural and smooth gradation.

High Frame Rates? No Problem.
High frame rate (HFR) video sources can pose signal workflow challenges for integrated systems, but the VC-100UHD handles them with ease. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.

Onboard Visual Effects and Image Processing
Using the VC-100UHD’s built-in visual effects, it’s simple to rotate, flip, and mirror images. For example, a portrait image generated by a smartphone can be trimmed and rotated to fit seamlessly on a 16:9 landscape display for digital signage. And with the VC-100UHD’s Frame Synchronizer and Genlock features, you can easily re-clock and stabilize video images as needed.

Region of Interest Switching Like PTZ Camera Using USB Numeric Keypad
Produce multi-shot productions with a single 4K camera or zoom in and highlight the details of a presentation using the VC-100UHD's built-in Region of Interest (ROI) function. Creating an innovative viewer experience has never been easier; connect any 4K video input source to zoom, move, crop, and scale up to eight regions of interest windows. Switch between the ROI windows using any USB numeric keypad to use it like PTZ camera in the live event operation.

USB 3.0 Webcam Output For Streaming and Recording
Reach a worldwide audience and broadcast uncompressed 1080p video at 59.94/50 Hz on popular streaming platforms with the VC-100UHD. The USB 3.0 webcam output offers plug-and-play operation with the latest USB audio/video protocols, so there’s no software to download or drivers to maintain. And with Roland’s free VR Capture software, you can record your HD livestreams in ProRes 422 (Mac) or MP4 (Windows) formats for editing and distribution.

Advanced Audio Features
Along with video, the VC-100UHD can process embedded digital audio from the 12G-SDI and HDMI 2.0 inputs. Analog I/O is provided too, with balanced audio on a 25-pin D-sub connector for installations and line-level stereo audio on RCA jacks for prosumer video gear. An advanced audio patching system lets you route and embed/de-embed up to 16 input channels and output up to eight channels. Need to adjust lip sync? Just tweak the delay that’s available on each audio output.

Compact and Ready for Any Application

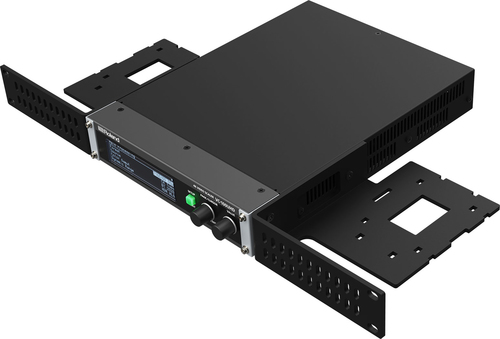

The VC-100UHD works great as a portable processor for grab-and-go productions, or can be installed in a rack for use in larger systems and fixed installations. It also comes equipped with rich integration capabilities, including:
- Selectable EDID on HDMI
- 12 Video test patterns (including scrolling and animated patterns) and an audio test tone generator assignable to a CH
- Wide range color correction to meet a full line input and output devices, like LED display
- Support for backing up and recalling system settings on the job via USB memory
- Remote control support over LAN

Application Examples
LED Walls
LED display technology has become a versatile creative tool for event designers. But many corporate events and festivals require pixel widths that exceed the HD format's 1920 pixels. The VC-100UHD’s Ultra Scaler offers dot-by-dot output scaling at incredibly high quality, allowing you to connect to an LED display controller at the exact pixel dimensions needed. Supported resolutions include 4K High Dynamic Range (HDR), 1080p Standard Dynamic Range (SDR), and DCI Cinema 4K.

Esports
Extreme gaming machines are rapidly emerging as the esports market takes off. When milliseconds and costs matter, esports athletes have found a sweet spot for gameplay: 1080p resolution at HFR 120 or 144 Hz for smooth motion while battling opponents. The VC-100UHD lets you integrate these high-end gaming machines into your HD 59.94/50 Hz workflows while keeping gamers happy with a no-latency HFR up to 240Hz throughput. And by de-embedding gameplay audio from HDMI, you eliminate analog-to-digital conversions and keep the sound quality high. Game on!

Livestreaming
The VC-100UHD supports uncompressed livestreaming to global audiences at top quality via USB 3.0. Convert and scale incoming 4K UHD signals to Full HD 1080p/60 resolution, or to lower resolutions to suit the available bandwidth. Audio delay is also available for correcting any lip sync issues you might encounter.

Staging
The VC-100UHD's ROI switching capabilities are effective for stage events and online sessions where the client doesn't have multiple cameras due to location or budget. With Region of Interest, you can crop out any part of the 4K video image and enlarge it to HD resolution. By connecting a USB number keypad, it is possible to operate the crop-out points in real time. Up to 8 ROI crop outs can be registered, and switched instantly.
