Atlona AT-OME-RX21 matrix switcher AV matrix switcher 104 W

Product code: AT-OME-RX21
  • Atlona AT-OME-RX21
  • AV matrix switcher
  • 4096 x 2160 pixels
  • 4096×2160 @ 60/50/30/25/24 Hz 3840×2160 @60/50/30/25/24 Hz 1920x1080p @...
  • Black
  • Metal
  • CE
  • FCC
  • UL

Atlona AT-OME-RX21 matrix switcher AV matrix switcher 104 W

Product code Alt: AT-OME-RX21
Atlona AT-OME-RX21 matrix switcher AV matrix switcher 104 W
  • Main image

Product Description

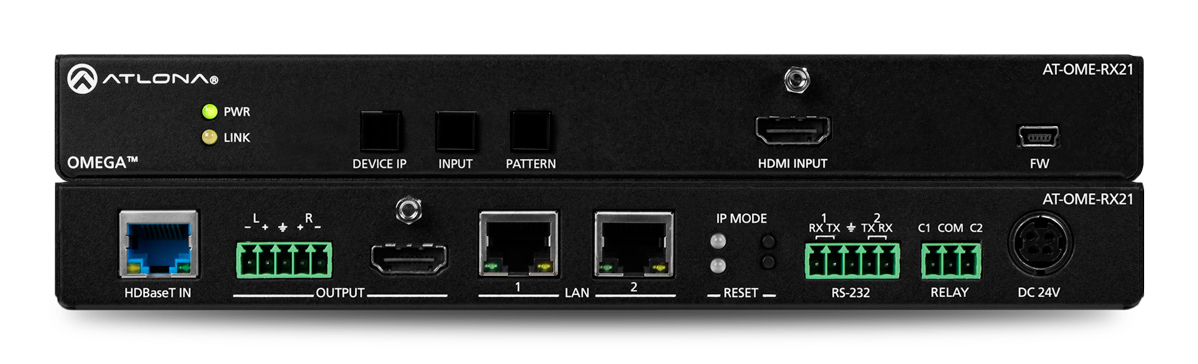

The Atlona AT-OME-RX21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX21 receives HDBaseT for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDMI input supports video up to UHD/60 4:4:4. The OME-RX21 is HDCP 2.2 compliant and features 4K/60 upscaling and downscaling with frame rate conversion. The OME-RX21 is ideal for 4K presentation applications with Omega or UHD-EX Series transmitters, as well as Atlona AV presentation switchers with HDBaseT outputs, local HDMI sources, and the Gain™ Series amplifiers.

Versatile scaler, switcher, and extender

The OME-RX21 combines the benefits of 4K/UHD scaling, auto-switching for HDBaseT and HDMI inputs, integrated display control, and more. It incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-RX21 can remotely power an Atlona transmitter over HDBaseT. For additional integration convenience, the OME-RX21 features audio de-embedding, integrated two-port Ethernet switch, contact closure ports for controlling a motorized screen or display lift, internal video test patterns for setup and troubleshooting, and remote management with Velocity Device Manager.

Automatic Display Control

The OME-RX21 can provide control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the OME-RX21 can trigger a display to power on automatically whenever a laptop or other device is connected to the OME-RX21. At the end of the presentation, when the presenter disconnects the laptop, the OME-RX21 forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The OME-RX21 display control capability can also be triggered by an external control system.

* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.

Reliable Auto-Switching

The OME-RX21 automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

Features

  • HDBaseTTM receiver for HDMI® video, Ethernet, power, and control
  • Local HDMI input
  • 4K/UHD downscaling and upscaling
  • Supplies power over HDBaseT to a transmitter
  • Audio de-embedding
  • Dual Ethernet ports and integrated network switch
  • Two relays provide control for motorized screen, shades, or display lift
    •

    Benefits

    4K upscaling and downscaling.
    4K upscaling and downscaling.
    • Seamlessly incorporate 4K and HD into any system.
    Compact form factor.
    Compact form factor.
    • Small and easily mountable onto surfaces.
    Display control and automation.
    Display control and automation.
    • Effortless system operation with no user intervention.

    Specifications

    Display
    Built-in display
    No
    Power
    Power consumption (max)
    104 W
    Features
    Product type
    AV matrix switcher

    Customer Reviews

    No reviews have been written for this product yet.
