Atlona AT-HDVS-150-TX-PSK AV extender AV transmitter Black

Product code: AT-HDVS-150-TX-PSK
  • Atlona AT-HDVS-150-TX-PSK
  • 4096 x 2160 pixels
  • AV transmitter
  • 70 m
  • Wired
  • Black
  • HDCP

Atlona AT-HDVS-150-TX-PSK AV extender AV transmitter Black

Product code Alt: AT-HDVS-150-TX-PSK
Atlona AT-HDVS-150-TX-PSK AV extender AV transmitter Black
  • Main image

Product Description

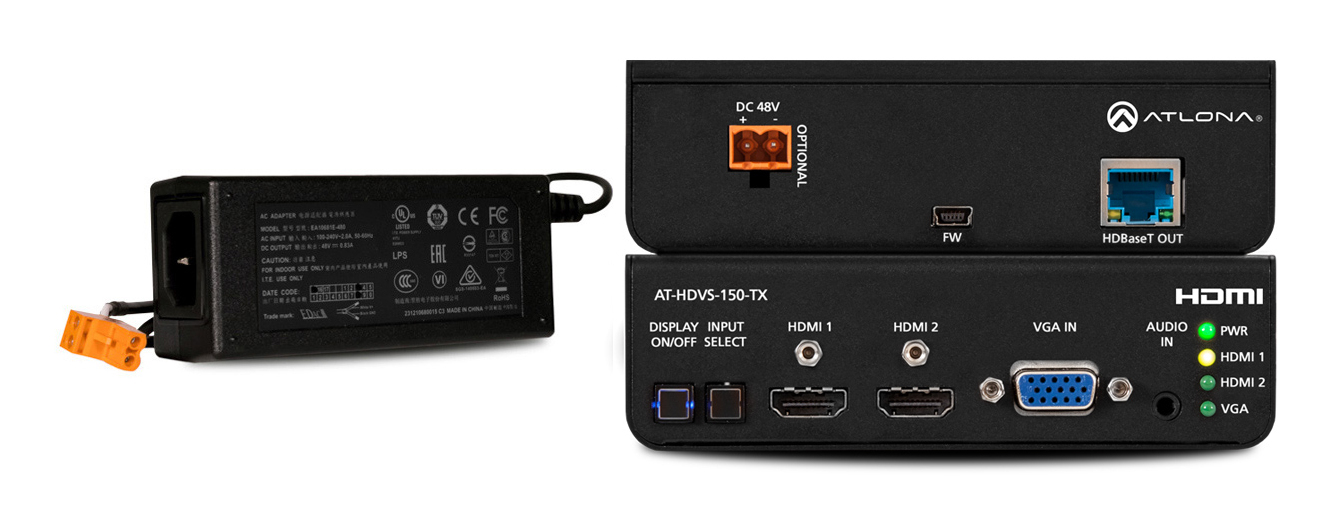

The Atlona AT-HDVS-150-TX-PSK is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 1080p, plus embedded audio can be transmitted up to 230 feet (70 meters), and up to 130 feet (40 meters) for 4K/UHD video @ 60 Hz with 4:2:0 chroma subsampling. The HDVS-150-TX-PSK is identical to the AT-HDVS-150-TX, with the addition of local powering capability and an external power supply. This makes it ideal for extending AV directly to a projector with an HDBaseT input. The HDVS-150-TX-PSK can serve as the central component of a compact, automated AV system with the convenience of automatic input selection.

Compact Switcher and Extender
The HDVS-150-TX-PSK combines the benefits of auto-switching and the advantages of HDBaseT signal transmission. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Surface mounting brackets are provided with the HDVS-150-TX-PSK for easy under-table, furniture, or on-wall installation.

Auto-Switching
The HDVS-150-TX-PSK automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal.

Automatic Display Control
When used in conjunction with the AT-HDVS-150-RX receiver, the HDVS-150-TX-PSK can provide control to a display through RS-232, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-150-TX-PSK can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-TX-PSK forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment.

A power button on the front panel can be used for manual on/off control of the display.

Automatic display control is available only when connected to the AT-HDVS-150-RX receiver.

Applications
- Simple yet complete AV systems with HDBaseT-equipped projectors and flat-panel displays
- Installations in which HDVS-150 Series transmitters are to be used with third-party HDBaseT devices

Features

  • 3×1 HDBaseTTM switcher with two HDMI® inputs and one VGA input
  • Local AC powered version of AT-HDVS-150-TX – ideal for extension to an HDBaseT-equipped projector
  • HDBaseT transmitter for AV and control up to 230 feet (70 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with a compatible HDBaseT-equipped display or receiver)
  • Automatic display control (when connected to the AT-HDVS-150-RX)
  • Automatic input selection
  • Front panel input selection and display on/off control
    •

    Specifications

    Ports & interfaces
    Connectivity technology
    Wired
    Features
    Type
    AV transmitter
    Maximum resolution
    4096 x 2160 pixels
