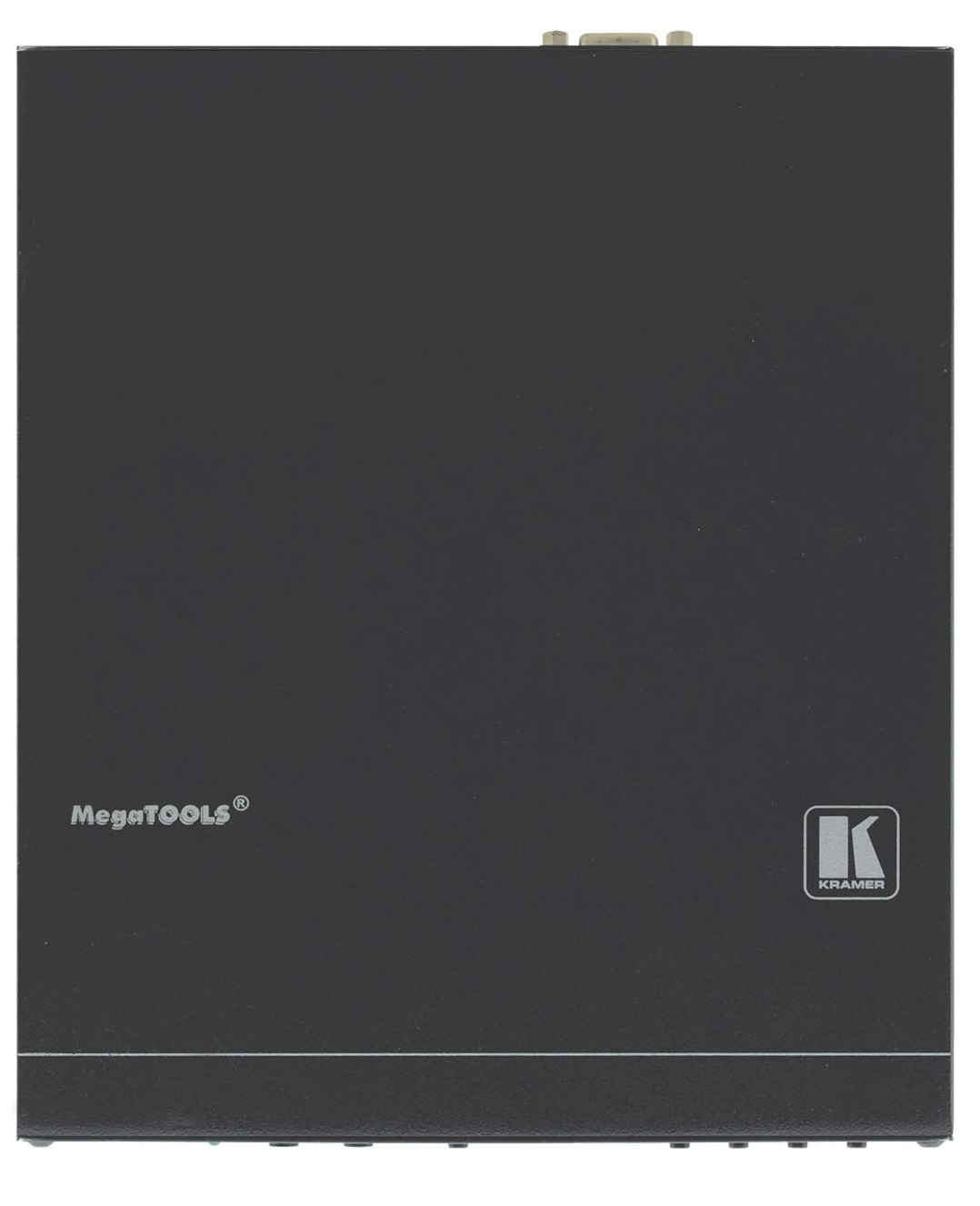

Kramer Electronics VP-428H2

£951.19 excl. VAT

Kramer Electronics VP-428H2

Product code: 72-00003790

Kramer Electronics VP-428H2

Product code Alt: 72-00003790

Product Description

VP-428H2

VP−428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP−428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS−232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up−scales, down scales or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.
- PixPerfect Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology.
- HDMI Support — HDCP 2.2 Compliant. 4K60, CEC, xvYCC color (on input), Dolby TureHD/DTS–HD Master Audio as specified in HDMI 2.0.
- HDBaseT Certified.
- System Range — For the HDBaseT output, extended reach of up to 100m (330ft) using Kramer recommended cables.
- Provides Power (PoE) on HDBaseT Output to Compatible Devices.
- Max. Resolutions — Input: 4K@60Hz (4:4:4); Output: 4K@60Hz (4:2:0).
- Max. VGA Resolution — 1920 x 1200 @60Hz.
- Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness are set individually for each input.
- Constant Output Sync — No output disruption while switching between inputs when no video is detected.
- Audio — Unbalanced stereo and embedded audio.
- Auto Input Switching — Last connected & auto–scan, selectable.
- HDBaseT Tunneling — Supports full HDBaseT tunneling of Ethernet and RS–232 data.
- Non–Volatile Memory — Saves final settings.
- Flexible Control Options — Front panel push buttons, RS–232, OSD (on–screen display) menu with front panel navigation buttons.

Specifications

Features
Product colour	Black
Housing material	Metal
Scaled resolutions	4096 x 2160
Video
Supported graphics resolutions	640 x 350, 640 x 400, 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 848 x 480, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 1200, 4096 x 2160
HDCP	Yes
HDCP version	2.2
Maximum refresh rate	75 Hz
Ports & interfaces
HDMI in	1
VGA (D-Sub) input ports	1
RJ-45 ports quantity	1
USB 2.0 ports quantity	1
DisplayPorts quantity	1
RS-232 input ports	2
HDBaseT output ports	1
Analog audio input terminal ports	1
Weight & dimensions
Width	187.5 mm
Depth	115 mm
Height	25.4 mm
Weight	900 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Package width	351 mm
Package depth	212 mm
Package height	72 mm
Package weight	1.4 kg
